Machine requirements
For machines that use ISO20 tooling and water cooling. Check that your drive supports 24,000 rpm rated and that the mounting dimensions fit: Ø80 mm · 335 mm overall · 98 mm clamp.
View full-size photo
GDL SPINDLE · ATC
GDL80-20-24Z/2.2B
An 80 mm water-cooled ISO20 ATC spindle rated at 2.2 kW and 24,000 rpm. Its four-pole, 800 Hz specification distinguishes this configuration.
2.2 kW ratedISO20Water-cooled24,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering

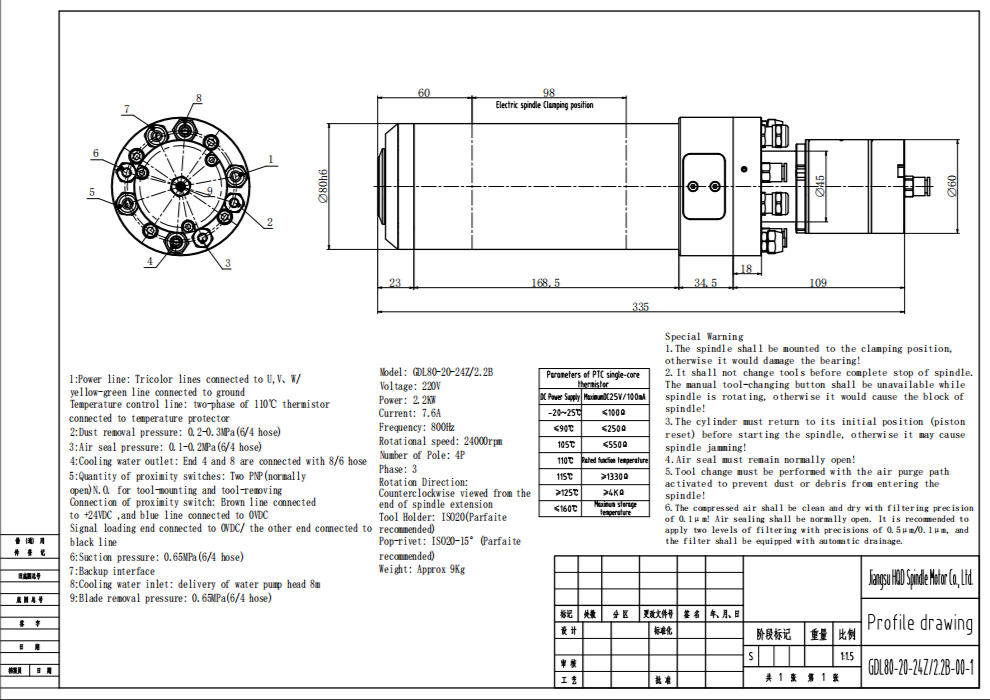

The drawing gives 98 mm clamping length and 335 mm overall length. Check the B-version rear cylinder and housing as well as the 220 V / 7.6 A winding.
Compare alternatives
The air-cooled GDL40.5 also uses ISO20 but has different mounting, auxiliary hardware and rated speed/frequency.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This water-cooled spindle uses ISO20 tooling. Power: 2.2 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 80 mm body diameter, 98 mm clamping length, 335 mm overall length, 9 kg weight.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 2.2 |
| Rated speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ISO20 |
| Tool change | Automatic tool change |
| Electrical | |
| Spindle winding (V) | 220 |
| Rated current (A) | 7.6 |
| Frequency (Hz) | 800 |
| Poles | 4 |
| Dimensions and weight | |
| Body diameter (mm) | 80 |
| Overall length (mm) | 335 |
| Clamping length (mm) | 98 |
| Weight (kg) | 9 |
| Cooling and feedback | |
| Cooling | Water-cooled |
INSTALLATION CHECKS
Match the whole assembly.
Start with the exact GDL80-20-24Z/2.2B configuration. Compare the mounting drawing, nose clearance and connection locations with the existing installation. Match the taper, pneumatic release system and sensing requirements before planning the tool-change sequence.
- Check the water circuit and the connector details shown in the drawing.
- Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDL80-20-24Z/2.2BCurrent configuration | 2.2 kW rated | 24,000 rpm rated | ISO20 | Water-cooled | Ø80 mm · 335 mm overall · 98 mm clamp |
| GDL40.5-ISO20-24Z/2.2 | 2.2 kW rated | 18,000 rpm rated / 24,000 rpm max | ISO20 | Air-cooled | 372.5 mm overall |
| GDL100-25-24Z/2.5 | 2.5 kW rated | 24,000 rpm rated | ISO25 | Water-cooled | Ø100 mm · 130 mm clamp |
| GDL110-30-18Z/3.2 | 3.2 kW rated | 18,000 rpm rated | BT30 | Water-cooled | Ø110 mm · 132 mm clamp |
| GDL120-30-24Z/5.5 | 5.5 kW rated | 24,000 rpm rated | BT30 | Water-cooled | Ø120 mm · 496.5 mm overall · 136 mm clamp |
DOWNLOADS
Files for this configuration.
No standalone PDF is listed for this configuration. Use the full-size drawing above and include any document requirements in your inquiry.
For CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDL80-20-24Z/2.2B need?
This configuration combines ISO20 tooling, 24,000 rpm rated and Ø80 mm · 335 mm overall · 98 mm clamp. Keep the complete code when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ISO20 tooling, drive details and cooling arrangement. The air-cooled GDL40.5 also uses ISO20 but has different mounting, auxiliary hardware and rated speed/frequency.
REQUEST A QUOTE
Tell us what your machine needs.
Share a model or describe what you need to match. Unknown technical details can be left blank.
Useful details to have ready
- Exact code and readable nameplate
- Mounting dimensions and available clearance
- Tool interface and required speed
- Drive output, cooling and ATC connections
Attach photographs or drawings in your email application.
