Machine requirements
For machines that use ISO25 tooling and water cooling. Check that your drive supports 24,000 rpm rated and that the mounting dimensions fit: Ø100 mm · 130 mm clamp.
View full-size photo
GDL SPINDLE · ATC
GDL100-25-24Z/2.5
A water-cooled ATC spindle with ISO25 tooling and 2.5 kW rated output. Check ISO25 holders and the release system before comparing it with other taper sizes.
2.5 kW ratedISO25Water-cooled24,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
Mounting dimensions include a 100 mm body and 130 mm clamping length. The 393 mm body reference and 41.5 mm rear projection are separate dimensions; do not add them to estimate overall length.
Compare alternatives
The ISO20 GDL80 and BT30 GDL110 configurations use different holders and rear assemblies.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This water-cooled spindle uses ISO25 tooling. Power: 2.5 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 100 mm body diameter, 130 mm clamping length, 18 kg weight. Winding options: 220 V / 9.2 A or 380 V / 5.5 A.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 2.5 |
| Rated speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ISO25 |
| Tool change | Automatic tool change |
| Electrical | |
| Frequency (Hz) | 400 |
| Poles | 2 |
| Dimensions and weight | |
| Body diameter (mm) | 100 |
| Clamping length (mm) | 130 |
| Body reference length (mm) | 393 |
| Rear projection (mm) | 41.5 |
| Weight (kg) | 18 |
| Cooling and feedback | |
| Cooling | Water-cooled |
Winding options
Match the voltage and current of the winding you intend to order.
- 220 V · 9.2 A
- 380 V · 5.5 A
INSTALLATION CHECKS
Match the whole assembly.

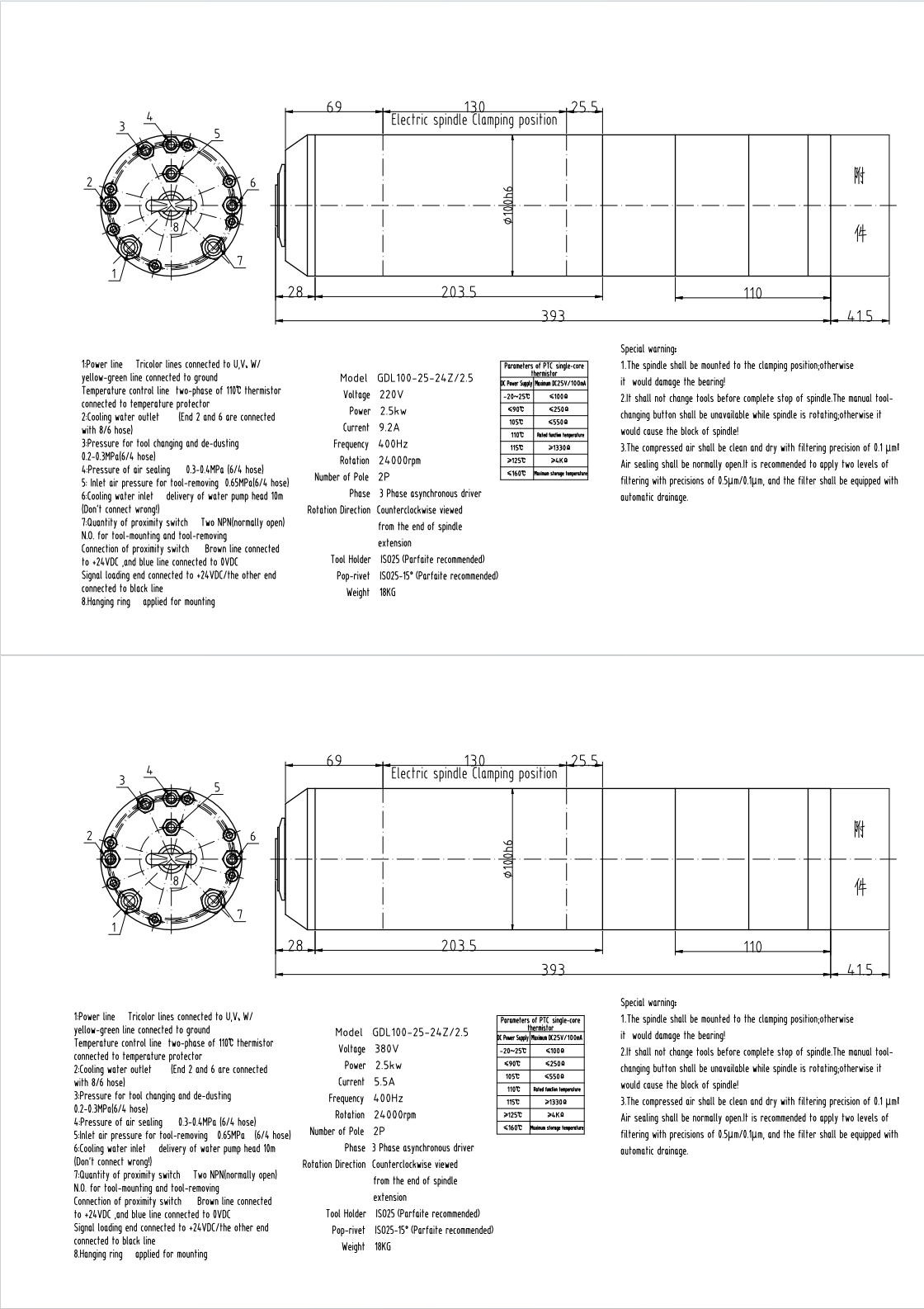

Start with the exact GDL100-25-24Z/2.5 configuration. Compare the mounting drawing, nose clearance and connection locations with the existing installation. Match the taper, pneumatic release system and sensing requirements before planning the tool-change sequence.
- Check the water circuit and the connector details shown in the drawing.
- Match the drive to the selected winding’s voltage and current.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDL100-25-24Z/2.5Current configuration | 2.5 kW rated | 24,000 rpm rated | ISO25 | Water-cooled | Ø100 mm · 130 mm clamp |
| GDL110-30-18Z/3.2 | 3.2 kW rated | 18,000 rpm rated | BT30 | Water-cooled | Ø110 mm · 132 mm clamp |
| GDL80-20-24Z/2.2B | 2.2 kW rated | 24,000 rpm rated | ISO20 | Water-cooled | Ø80 mm · 335 mm overall · 98 mm clamp |
| GDL120-30-24Z/5.5 | 5.5 kW rated | 24,000 rpm rated | BT30 | Water-cooled | Ø120 mm · 496.5 mm overall · 136 mm clamp |
| GDL125-40-12Z/7.5 | 7.5 kW rated | 12,000 rpm rated | BT40 | Water-cooled | Ø125 mm · 618 mm overall · 172 mm clamp |
DOWNLOADS
Files for this configuration.
No standalone PDF is listed for this configuration. Use the full-size drawing above and include any document requirements in your inquiry.
For CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDL100-25-24Z/2.5 need?
This configuration combines ISO25 tooling, 24,000 rpm rated and Ø100 mm · 130 mm clamp. Keep the complete code when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ISO25 tooling, drive details and cooling arrangement. The ISO20 GDL80 and BT30 GDL110 configurations use different holders and rear assemblies.
