Machine requirements
Consider this model when your machine uses ISO20 automatic tool change and can accommodate the spindle body and its side-mounted auxiliary assembly.
View full-size photo
GDL SPINDLE · ATC
GDL40.5-ISO20-24Z/2.2
A 2.2 kW air-cooled ATC spindle with an ISO20 interface. Rated speed is 18,000 rpm; the separate maximum is 24,000 rpm. Match both limits to your drive settings.
2.2 kW ratedISO20Air-cooled18,000 rpm rated / 24,000 rpm max
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
The spindle winding uses 220 V. The 24 V DC fan and sensor connections are separate auxiliary circuits; they are not alternative spindle supply voltages.
Compare alternatives
For a machine built around BT30 tooling and a water circuit, compare the GDL120-30-24Z/5.5. Changing the taper also changes the installation and tool-change requirements.
Compare the differences →SPECIFICATIONS
Read the operating conditions.

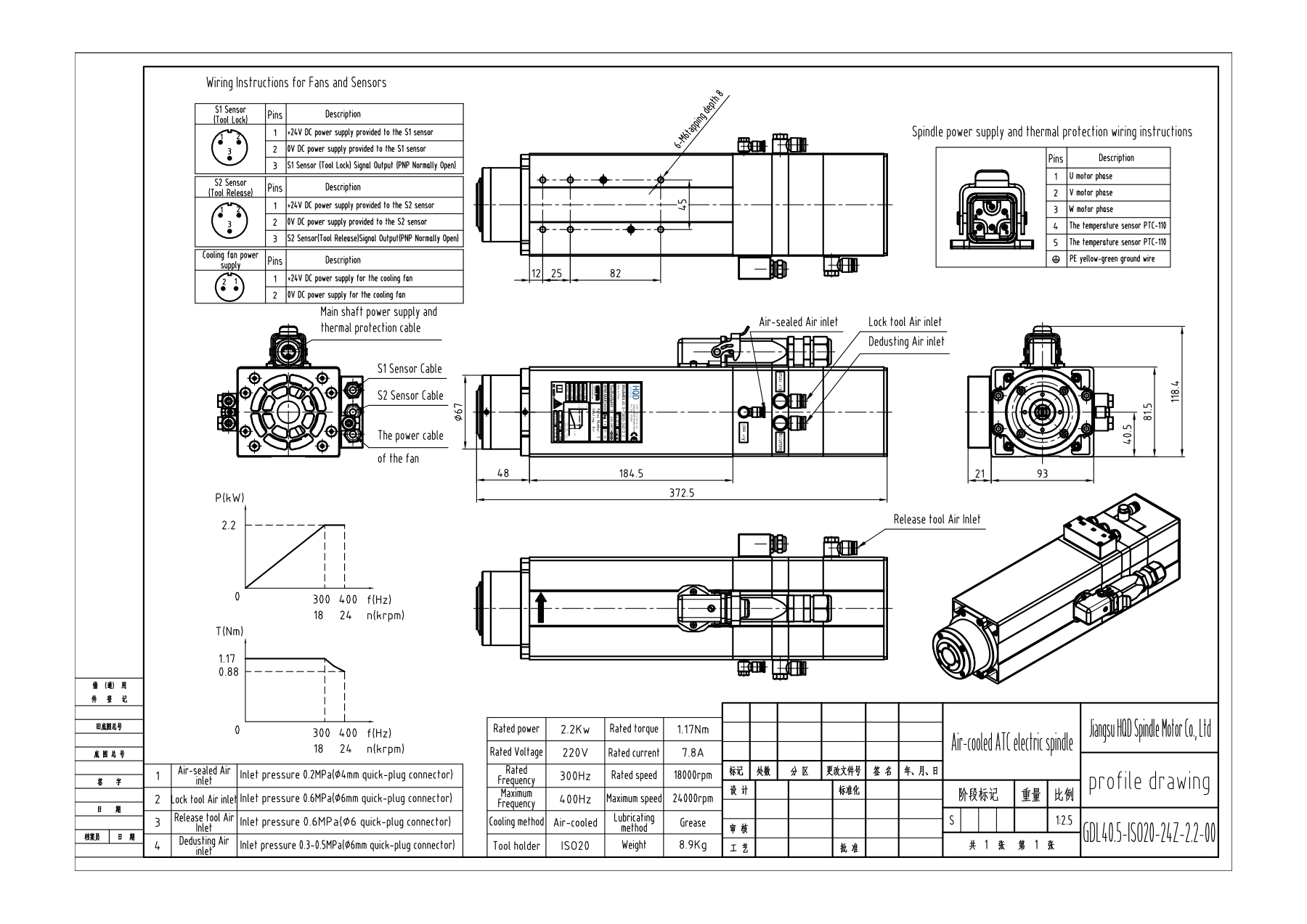

The drawing specifies 2.2 kW at 18,000 rpm and 300 Hz, with a maximum of 24,000 rpm at 400 Hz. Rated torque is 1.17 N·m and weight is 8.9 kg. Overall assembly length is 372.5 mm.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 2.2 |
| Rated torque (N·m) | 1.17 |
| Rated speed (rpm) | 18,000 |
| Maximum speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ISO20 |
| Tool change | Automatic tool change |
| Electrical | |
| Spindle winding (V) | 220 |
| Rated current (A) | 7.8 |
| Rated frequency (Hz) | 300 |
| Maximum frequency (Hz) | 400 |
| Dimensions and weight | |
| Overall length (mm) | 372.5 |
| Weight (kg) | 8.9 |
| Cooling and feedback | |
| Cooling | Air-cooled |
INSTALLATION CHECKS
Match the whole assembly.
Match the ISO20 toolholder, mounting pattern, side clearances and signal wiring. A similar power rating does not establish interchangeability.
- Confirm pneumatic requirements and the release/clamp sequence for your machine.
- Verify fan and sensor wiring separately from the spindle winding.
- Use the dimensional PDF for installation checks. Include the exact configuration in requests for additional drawings.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDL40.5-ISO20-24Z/2.2Current configuration | 2.2 kW rated | 18,000 rpm rated / 24,000 rpm max | ISO20 | Air-cooled | 372.5 mm overall |
| GDL120-30-24Z/5.5 | 5.5 kW rated | 24,000 rpm rated | BT30 | Water-cooled | Ø120 mm · 496.5 mm overall · 136 mm clamp |
| GDL80-20-24Z/2.2B | 2.2 kW rated | 24,000 rpm rated | ISO20 | Water-cooled | Ø80 mm · 335 mm overall · 98 mm clamp |
| GDL100-25-24Z/2.5 | 2.5 kW rated | 24,000 rpm rated | ISO25 | Water-cooled | Ø100 mm · 130 mm clamp |
| GDL110-30-18Z/3.2 | 3.2 kW rated | 18,000 rpm rated | BT30 | Water-cooled | Ø110 mm · 132 mm clamp |
DOWNLOADS
Files for this configuration.
PDF · 681 KB
Dimensions, specifications, wiring and performance curves
GDL40.5-ISO20-24Z/2.2 · 220 V spindle; separate 24 V DC fan/sensors
English technical labels; Chinese title block · Revision not specified
Document number: GDL40.5-ISO20-24Z-2.2-00
Download PDFFor CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
Is 24,000 rpm the rated speed?
No. The drawing lists 18,000 rpm at 300 Hz as the rated point and 24,000 rpm at 400 Hz as the maximum.
Can the spindle run from the 24 V auxiliary supply?
No. The 24 V DC connections serve the fan and sensors. The spindle winding is specified for 220 V.
