Machine requirements
For machines that use ISO30 tooling and water cooling. Check that your drive supports 24,000 rpm rated and that the mounting dimensions fit: 483.5 mm overall.
View full-size photo
GDL SPINDLE · ATC
GDL70-24Z/9.0B
The water-cooled ISO30 B configuration has a 9 kW S1 curve at 24,000 rpm and TA20°C. Cooling and duty separate it from the air-cooled versions.
9 kW ratedISO30Water-cooled24,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
Check the 483.5 mm overall length, 31 kg weight and documented 380 V / 20 A specification. Confirm the supplied winding rather than using a photo sticker from another configuration.
Compare alternatives
The air-cooled long- and short-nose versions carry S6-60% curves and different installation envelopes.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This water-cooled spindle uses ISO30 tooling. Power: 9 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 483.5 mm overall length, 31 kg weight.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 9 |
| Rated speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ISO30 |
| Tool change | Automatic tool change |
| Electrical | |
| Spindle winding (V) | 380 |
| Rated current (A) | 20 |
| Frequency (Hz) | 800 |
| Poles | 4 |
| Dimensions and weight | |
| Overall length (mm) | 483.5 |
| Weight (kg) | 31 |
| Cooling and feedback | |
| Cooling | Water-cooled |
Power curve: 9 kW at 24,000 rpm, S1, TA20°C.
INSTALLATION CHECKS
Match the whole assembly.

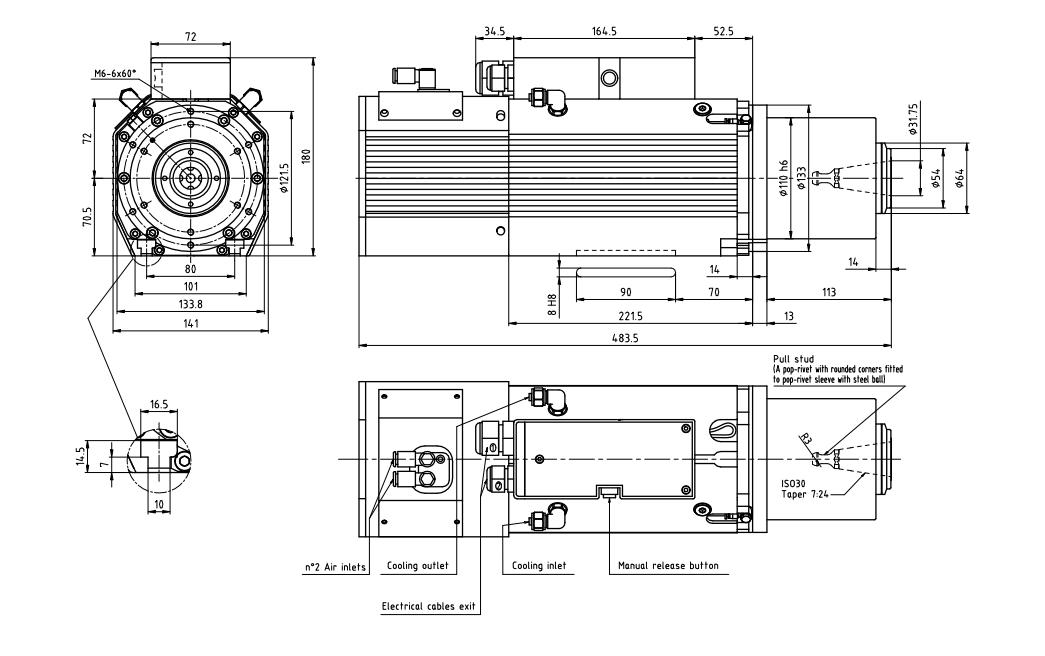

Start with the exact GDL70-24Z/9.0B configuration. Compare the mounting drawing, nose clearance and connection locations with the existing installation. Match the taper, pneumatic release system and sensing requirements before planning the tool-change sequence.
- Check the water circuit and the connector details shown in the drawing.
- Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDL70-24Z/9.0BCurrent configuration | 9 kW rated | 24,000 rpm rated | ISO30 | Water-cooled | 483.5 mm overall |
| GDL70-24Z/9.0 | 9 kW at S6-60%, TA20°C | 24,000 rpm rated | ISO30 | Air-cooled | ISO30 · Long nose · 551 mm overall |
| GDL70-24Z/9.0 | 9 kW at S6-60%, TA20°C | 24,000 rpm rated | ISO30 | Air-cooled | ISO30 · Short nose · 471 mm overall |
| GDL100-25-24Z/2.5 | 2.5 kW rated | 24,000 rpm rated | ISO25 | Water-cooled | Ø100 mm · 130 mm clamp |
| GDL110-30-18Z/3.2 | 3.2 kW rated | 18,000 rpm rated | BT30 | Water-cooled | Ø110 mm · 132 mm clamp |
DOWNLOADS
Files for this configuration.
PDF · 634 KB
Voltage, power and torque curves
GDL70-24Z/9.0B · water cooled · S1, TA 20°C
English · Revision not specified
Download PDFFor CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDL70-24Z/9.0B need?
This configuration combines ISO30 tooling, 24,000 rpm rated and 483.5 mm overall. Keep the complete code when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ISO30 tooling, drive details and cooling arrangement. The air-cooled long- and short-nose versions carry S6-60% curves and different installation envelopes.
