Machine requirements
For machines that use ISO30 tooling and air cooling. Check that your drive supports 24,000 rpm rated and that the mounting dimensions fit: ISO30 · Long nose · 551 mm overall.
View full-size photo
GDL SPINDLE · ATC
GDL70-24Z/9.0
ISO30 · Long nose
The long-nose ISO30 air-cooled ATC configuration has a documented 551 mm overall length. Its 9 kW curve is stated at S6-60% and TA20°C.
9 kW at S6-60%, TA20°CISO30Air-cooled24,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
Continuous S1 output is not established by that curve. Match the nose projection, rear cooling clearance and duty cycle before selecting the drive.
Compare alternatives
The short-nose ISO30 version is 471 mm overall; the water-cooled B version has a different cooling system and S1 curve.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This air-cooled spindle uses ISO30 tooling. Power: 9 kW at S6-60%, TA20°C. Speed: 24,000 rpm rated. Installation dimensions and weight: 551 mm overall length. Winding options: 220 V / 32 A or 380 V / 20 A.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Duty-conditioned power (kW) | 9 |
| Rated speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ISO30 |
| Tool change | Automatic tool change |
| Electrical | |
| Frequency (Hz) | 800 |
| Poles | 4 |
| Dimensions and weight | |
| Overall length (mm) | 551 |
| Cooling and feedback | |
| Cooling | Air-cooled |
Winding options
Match the voltage and current of the winding you intend to order.
- 220 V · 32 A
- 380 V · 20 A
Power curve: 9 kW at 24,000 rpm, S6-60%, TA20°C. This is a duty-conditioned value; continuous S1 output is not established.
INSTALLATION CHECKS
Match the whole assembly.

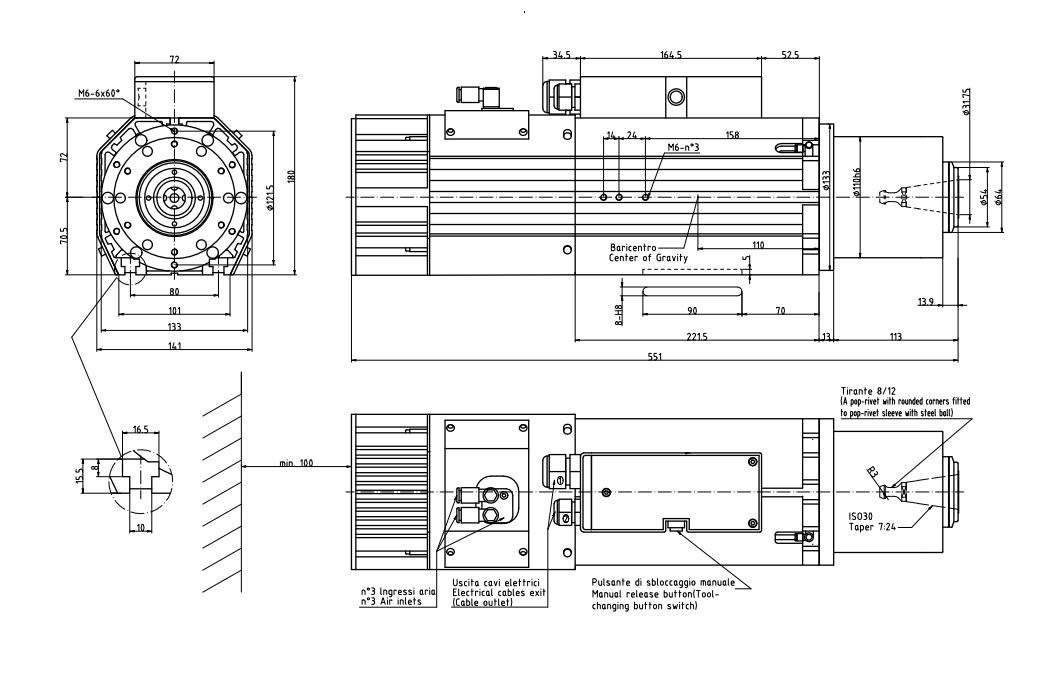

Start with the exact GDL70-24Z/9.0 configuration (iso30 · long nose). Compare the mounting drawing, nose clearance and connection locations with the existing installation. Match the taper, pneumatic release system and sensing requirements before planning the tool-change sequence.
- Allow unobstructed cooling airflow and confirm any fan wiring.
- Match the drive to the selected winding’s voltage and current.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDL70-24Z/9.0Current configuration | 9 kW at S6-60%, TA20°C | 24,000 rpm rated | ISO30 | Air-cooled | ISO30 · Long nose · 551 mm overall |
| GDL70-24Z/9.0 | 9 kW at S6-60%, TA20°C | 24,000 rpm rated | ISO30 | Air-cooled | ISO30 · Short nose · 471 mm overall |
| GDL70-24Z/9.0B | 9 kW rated | 24,000 rpm rated | ISO30 | Water-cooled | 483.5 mm overall |
| GDL100-25-24Z/2.5 | 2.5 kW rated | 24,000 rpm rated | ISO25 | Water-cooled | Ø100 mm · 130 mm clamp |
| GDL110-30-18Z/3.2 | 3.2 kW rated | 18,000 rpm rated | BT30 | Water-cooled | Ø110 mm · 132 mm clamp |
DOWNLOADS
Files for this configuration.
PDF · 122 KB
Voltage, power and torque curves
GDL70-24Z/9.0 · 380 V winding · long nose · S6-60%, TA 20°C
English · Revision not specified
Download PDFPDF · 122 KB
Voltage, power and torque curves
GDL70-24Z/9.0 · 220 V winding · long nose · S6-60%, TA 20°C
English · Revision not specified
Download PDFFor CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDL70-24Z/9.0 need?
This configuration combines ISO30 tooling, 24,000 rpm rated and ISO30 · Long nose · 551 mm overall. Keep the complete code and iso30 · long nose when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ISO30 tooling, drive details and cooling arrangement. The short-nose ISO30 version is 471 mm overall; the water-cooled B version has a different cooling system and S1 curve.
REQUEST A QUOTE
Tell us what your machine needs.
Share a model or describe what you need to match. Unknown technical details can be left blank.
Useful details to have ready
- Exact code and readable nameplate
- Mounting dimensions and available clearance
- Tool interface and required speed
- Drive output, cooling and ATC connections
Attach photographs or drawings in your email application.
