Machine requirements
For machines that use BT40 tooling and water cooling. Check that your drive supports 12,000 rpm rated and that the mounting dimensions fit: Ø125 mm · 618 mm overall · 172 mm clamp.

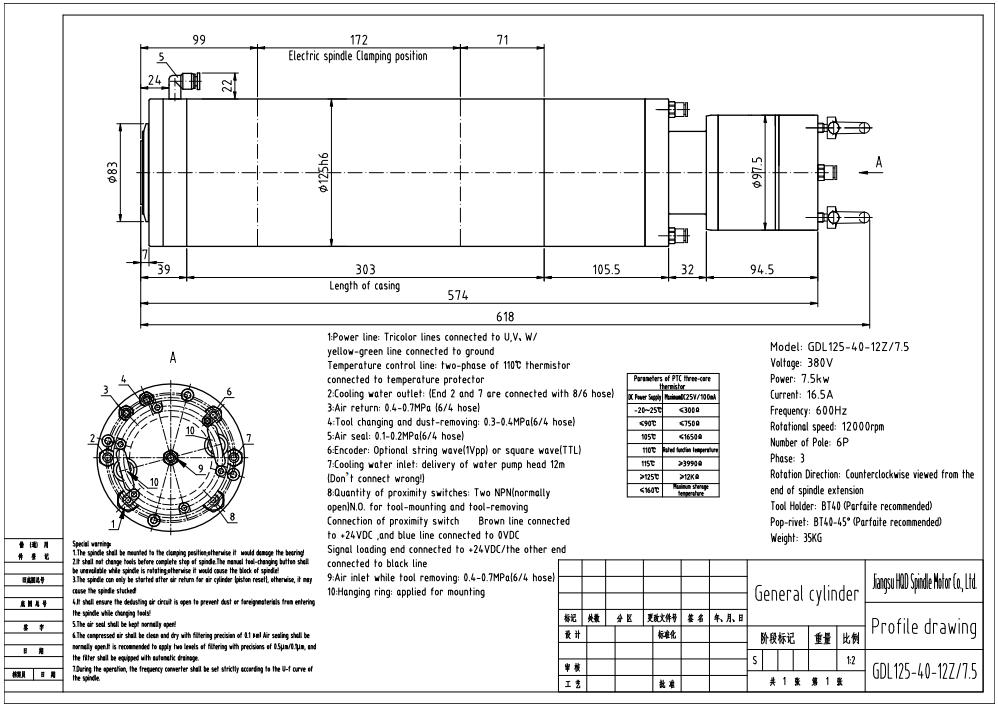

View full-size photo
GDL SPINDLE · ATC
GDL125-40-12Z/7.5
A BT40 water-cooled ATC configuration rated at 7.5 kW and 12,000 rpm. Consider it only with a machine equipped for the stated toolholder interface.
7.5 kW ratedBT40Water-cooled12,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
The assembly is 618 mm overall and weighs 35 kg. Encoder signals are optional: 1 Vpp sine or TTL square. Confirm what is supplied rather than assuming an encoder is included.
Compare alternatives
The BT30 GDL120 uses different tooling, a shorter envelope and a different operating point.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This water-cooled spindle uses BT40 tooling. Power: 7.5 kW rated. Speed: 12,000 rpm rated. Installation dimensions and weight: 125 mm body diameter, 172 mm clamping length, 618 mm overall length, 35 kg weight. Winding options: 380 V / 16.5 A.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 7.5 |
| Rated speed (rpm) | 12,000 |
| Tooling and mounting | |
| Tool interface | BT40 |
| Tool change | Automatic tool change |
| Electrical | |
| Frequency (Hz) | 600 |
| Poles | 6 |
| Dimensions and weight | |
| Body diameter (mm) | 125 |
| Overall length (mm) | 618 |
| Clamping length (mm) | 172 |
| Weight (kg) | 35 |
| Cooling and feedback | |
| Cooling | Water-cooled |
| Optional encoder signals | 1 Vpp sine / TTL square |
Winding options
Match the voltage and current of the winding you intend to order.
- 380 V · 16.5 A
INSTALLATION CHECKS
Match the whole assembly.
Start with the exact GDL125-40-12Z/7.5 configuration. Compare the mounting drawing, nose clearance and connection locations with the existing installation. Match the taper, pneumatic release system and sensing requirements before planning the tool-change sequence.
- Check the water circuit and the connector details shown in the drawing.
- Match the drive to the selected winding’s voltage and current.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDL125-40-12Z/7.5Current configuration | 7.5 kW rated | 12,000 rpm rated | BT40 | Water-cooled | Ø125 mm · 618 mm overall · 172 mm clamp |
| GDL120-30-24Z/5.5 | 5.5 kW rated | 24,000 rpm rated | BT30 | Water-cooled | Ø120 mm · 496.5 mm overall · 136 mm clamp |
| GDL100-25-24Z/2.5 | 2.5 kW rated | 24,000 rpm rated | ISO25 | Water-cooled | Ø100 mm · 130 mm clamp |
| GDL110-30-18Z/3.2 | 3.2 kW rated | 18,000 rpm rated | BT30 | Water-cooled | Ø110 mm · 132 mm clamp |
| GDL40.5-ISO20-24Z/2.2 | 2.2 kW rated | 18,000 rpm rated / 24,000 rpm max | ISO20 | Air-cooled | 372.5 mm overall |
DOWNLOADS
Files for this configuration.
No standalone PDF is listed for this configuration. Use the full-size drawing above and include any document requirements in your inquiry.
For CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDL125-40-12Z/7.5 need?
This configuration combines BT40 tooling, 12,000 rpm rated and Ø125 mm · 618 mm overall · 172 mm clamp. Keep the complete code when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required BT40 tooling, drive details and cooling arrangement. The BT30 GDL120 uses different tooling, a shorter envelope and a different operating point.
REQUEST A QUOTE
Tell us what your machine needs.
Share a model or describe what you need to match. Unknown technical details can be left blank.
Useful details to have ready
- Exact code and readable nameplate
- Mounting dimensions and available clearance
- Tool interface and required speed
- Drive output, cooling and ATC connections
Attach photographs or drawings in your email application.
