GDZ SPINDLE · MANUAL
GDZ-18B
A 65 mm water-cooled ER16 spindle rated at 1.5 kW. It keeps the 220 V / 5 A electrical point but changes the nose and assembly dimensions from GDZ-18.
1.5 kW ratedER16Water-cooled24,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
Check the 110 mm clamping length and 254.5 mm overall length. Confirm clearance around the ER16 nut and tool shank.
Compare alternatives
GDZ-17B also uses ER16 but has an 80 mm body; GDZ-18 uses ER11 with a shorter assembly.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This water-cooled spindle uses ER16 tooling. Power: 1.5 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 65 mm body diameter, 110 mm clamping length, 254.5 mm overall length, 4.5 kg weight.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 1.5 |
| Rated speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ER16 |
| Tool change | Manual tool change |
| Electrical | |
| Spindle winding (V) | 220 |
| Rated current (A) | 5 |
| Frequency (Hz) | 400 |
| Dimensions and weight | |
| Body diameter (mm) | 65 |
| Overall length (mm) | 254.5 |
| Clamping length (mm) | 110 |
| Weight (kg) | 4.5 |
| Cooling and feedback | |
| Cooling | Water-cooled |
INSTALLATION CHECKS
Match the whole assembly.

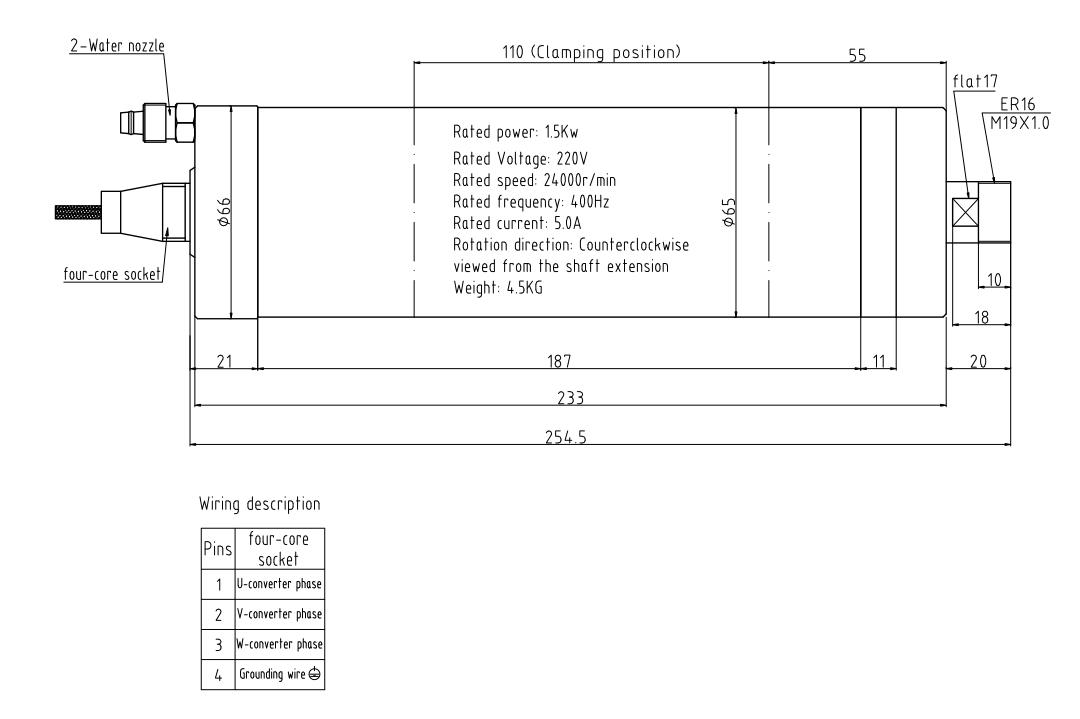

Start with the exact GDZ-18B configuration. Compare the mounting drawing, nose clearance and connection locations with the existing installation. Check the collet, nut clearance and usable clamp area before reusing tooling or supports.
- Check the water circuit and the connector details shown in the drawing.
- Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDZ-18BCurrent configuration | 1.5 kW rated | 24,000 rpm rated | ER16 | Water-cooled | Ø65 mm · 254.5 mm overall · 110 mm clamp |
| GDZ-17B | 1.5 kW rated | 24,000 rpm rated | ER16 | Water-cooled | Ø80 mm · 241 mm overall |
| GDZ-18 | 1.5 kW rated | 24,000 rpm rated | ER11 | Water-cooled | Ø65 mm · 235.5 mm overall |
| GDZ-18-2 | 0.8 kW rated | 24,000 rpm rated | ER11B | Water-cooled | Ø65 mm · 224 mm overall |
| GDZ-23 | 2.2 kW rated | 24,000 rpm rated | ER20 | Water-cooled | Ø80 mm · 268.5 mm overall · 120 mm clamp |
