Machine requirements
For machines that use ER16 tooling and water cooling. Check that your drive supports 24,000 rpm rated and that the mounting dimensions fit: Ø80 mm · 241 mm overall.

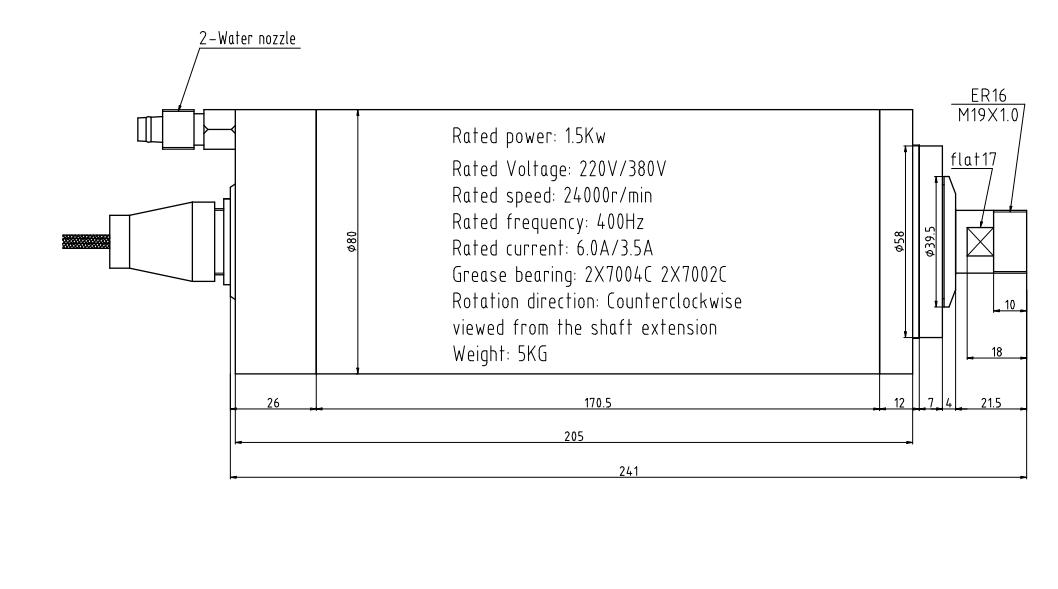

View full-size photo
GDZ SPINDLE · MANUAL
GDZ-17B
An 80 mm water-cooled manual spindle with ER16 tooling and 1.5 kW rated output. It is a different tooling choice from the ER20 GDZ-23.
1.5 kW ratedER16Water-cooled24,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
Use the 241 mm overall length and 5 kg weight when checking the clamp and nose clearance. Confirm the winding for the order.
Compare alternatives
GDZ-18B has a 65 mm body with ER16; GDZ-23 retains an 80 mm body but changes output and interface.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This water-cooled spindle uses ER16 tooling. Power: 1.5 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 80 mm body diameter, 241 mm overall length, 5 kg weight. Winding options: 220 V / 6 A or 380 V / 3.5 A.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 1.5 |
| Rated speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ER16 |
| Tool change | Manual tool change |
| Electrical | |
| Frequency (Hz) | 400 |
| Dimensions and weight | |
| Body diameter (mm) | 80 |
| Overall length (mm) | 241 |
| Weight (kg) | 5 |
| Cooling and feedback | |
| Cooling | Water-cooled |
Winding options
Match the voltage and current of the winding you intend to order.
- 220 V · 6 A
- 380 V · 3.5 A
INSTALLATION CHECKS
Match the whole assembly.
Start with the exact GDZ-17B configuration. Compare the mounting drawing, nose clearance and connection locations with the existing installation. Check the collet, nut clearance and usable clamp area before reusing tooling or supports.
- Check the water circuit and the connector details shown in the drawing.
- Match the drive to the selected winding’s voltage and current.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDZ-17BCurrent configuration | 1.5 kW rated | 24,000 rpm rated | ER16 | Water-cooled | Ø80 mm · 241 mm overall |
| GDZ-18B | 1.5 kW rated | 24,000 rpm rated | ER16 | Water-cooled | Ø65 mm · 254.5 mm overall · 110 mm clamp |
| GDZ-23 | 2.2 kW rated | 24,000 rpm rated | ER20 | Water-cooled | Ø80 mm · 268.5 mm overall · 120 mm clamp |
| GDZ-18 | 1.5 kW rated | 24,000 rpm rated | ER11 | Water-cooled | Ø65 mm · 235.5 mm overall |
| GDZ-18-2 | 0.8 kW rated | 24,000 rpm rated | ER11B | Water-cooled | Ø65 mm · 224 mm overall |
DOWNLOADS
Files for this configuration.
No standalone PDF is listed for this configuration. Use the full-size drawing above and include any document requirements in your inquiry.
For CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDZ-17B need?
This configuration combines ER16 tooling, 24,000 rpm rated and Ø80 mm · 241 mm overall. Keep the complete code when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ER16 tooling, drive details and cooling arrangement. GDZ-18B has a 65 mm body with ER16; GDZ-23 retains an 80 mm body but changes output and interface.
