Machine requirements
For machines that use ER11 tooling and water cooling. Check that your drive supports 24,000 rpm rated and that the mounting dimensions fit: Ø65 mm · 235.5 mm overall.

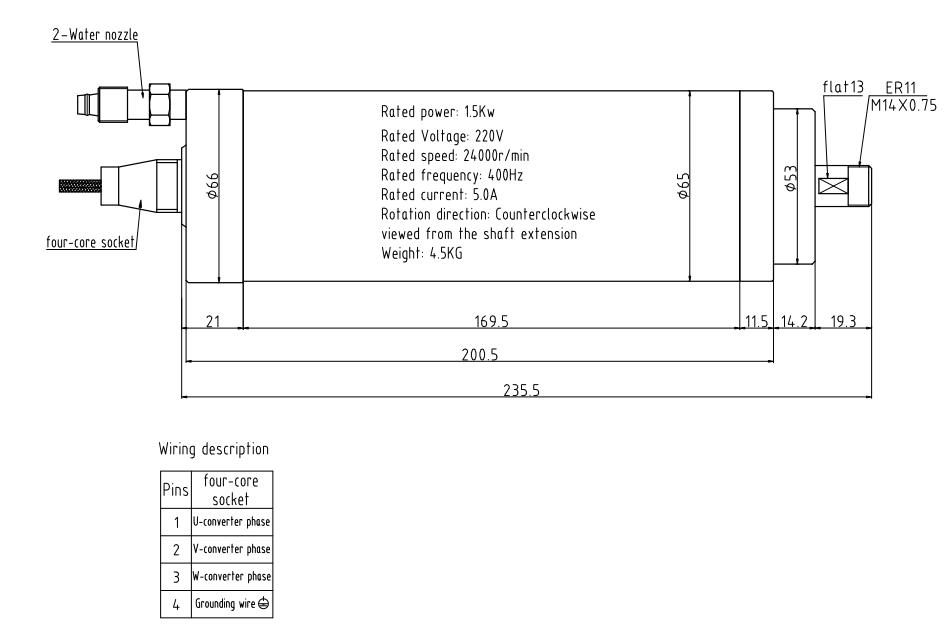

View full-size photo
GDZ SPINDLE · MANUAL
GDZ-18
A 65 mm water-cooled ER11 spindle at 1.5 kW and 24,000 rpm. The documented winding is 220 V / 5 A.
1.5 kW ratedER11Water-cooled24,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
Check the 235.5 mm overall length. Use the GDZ-18 drawing when checking the nose and connections; other GDZ-18 versions have different tooling and dimensions.
Compare alternatives
GDZ-18-2 is a different 0.8 kW ER11B configuration; GDZ-18B uses ER16 and a longer assembly.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This water-cooled spindle uses ER11 tooling. Power: 1.5 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 65 mm body diameter, 235.5 mm overall length, 4.5 kg weight.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 1.5 |
| Rated speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ER11 |
| Tool change | Manual tool change |
| Electrical | |
| Spindle winding (V) | 220 |
| Rated current (A) | 5 |
| Frequency (Hz) | 400 |
| Dimensions and weight | |
| Body diameter (mm) | 65 |
| Overall length (mm) | 235.5 |
| Weight (kg) | 4.5 |
| Cooling and feedback | |
| Cooling | Water-cooled |
INSTALLATION CHECKS
Match the whole assembly.
Start with the exact GDZ-18 configuration. Compare the mounting drawing, nose clearance and connection locations with the existing installation. Check the collet, nut clearance and usable clamp area before reusing tooling or supports.
- Check the water circuit and the connector details shown in the drawing.
- Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDZ-18Current configuration | 1.5 kW rated | 24,000 rpm rated | ER11 | Water-cooled | Ø65 mm · 235.5 mm overall |
| GDZ-18-2 | 0.8 kW rated | 24,000 rpm rated | ER11B | Water-cooled | Ø65 mm · 224 mm overall |
| GDZ-18B | 1.5 kW rated | 24,000 rpm rated | ER16 | Water-cooled | Ø65 mm · 254.5 mm overall · 110 mm clamp |
| GDZ-26-3 | 1.2 kW rated | 24,000 rpm rated | ER11 | Water-cooled | 24,000 rpm configuration · Ø62 mm · 237 mm overall · 100 mm clamp |
| GDZ-17B | 1.5 kW rated | 24,000 rpm rated | ER16 | Water-cooled | Ø80 mm · 241 mm overall |
DOWNLOADS
Files for this configuration.
No standalone PDF is listed for this configuration. Use the full-size drawing above and include any document requirements in your inquiry.
For CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDZ-18 need?
This configuration combines ER11 tooling, 24,000 rpm rated and Ø65 mm · 235.5 mm overall. Keep the complete code when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ER11 tooling, drive details and cooling arrangement. GDZ-18-2 is a different 0.8 kW ER11B configuration; GDZ-18B uses ER16 and a longer assembly.
REQUEST A QUOTE
Tell us what your machine needs.
Share a model or describe what you need to match. Unknown technical details can be left blank.
Useful details to have ready
- Exact code and readable nameplate
- Mounting dimensions and available clearance
- Tool interface and required speed
- Drive output, cooling and ATC connections
Attach photographs or drawings in your email application.
