Machine requirements
For machines that use ER11 tooling and water cooling. Check that your drive supports 24,000 rpm rated and that the mounting dimensions fit: 24,000 rpm configuration · Ø62 mm · 237 mm overall · 100 mm clamp.

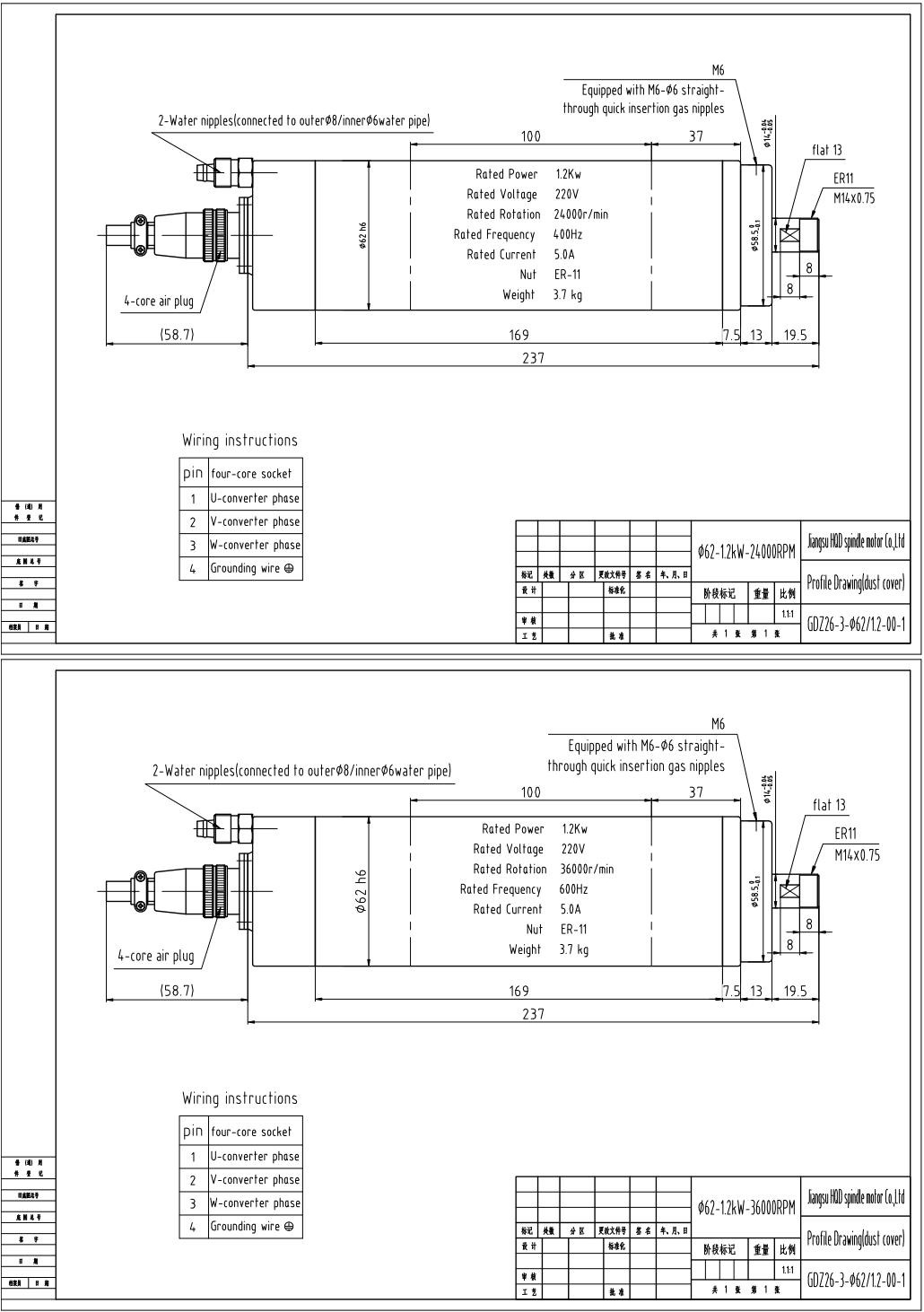

View full-size photo
GDZ SPINDLE · MANUAL
GDZ-26-3
24,000 rpm configuration
The 24,000 rpm, 400 Hz version of GDZ-26-3 is rated at 1.2 kW with ER11 tooling. Use the 24,000 rpm / 400 Hz specification when matching the drive.
1.2 kW ratedER11Water-cooled24,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
Use the 220 V / 5 A specification and the 62 mm body drawing for this version. Do not transfer these values to a 36,000 rpm configuration.
Compare alternatives
GDK58-24Z/0.8 has a smaller body and different output; GDZ-18 has a larger 65 mm body and 1.5 kW rating.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This water-cooled spindle uses ER11 tooling. Power: 1.2 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 62 mm body diameter, 100 mm clamping length, 237 mm overall length, 3.7 kg weight.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 1.2 |
| Rated speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ER11 |
| Tool change | Manual tool change |
| Electrical | |
| Spindle winding (V) | 220 |
| Rated current (A) | 5 |
| Frequency (Hz) | 400 |
| Dimensions and weight | |
| Body diameter (mm) | 62 |
| Overall length (mm) | 237 |
| Clamping length (mm) | 100 |
| Weight (kg) | 3.7 |
| Cooling and feedback | |
| Cooling | Water-cooled |
INSTALLATION CHECKS
Match the whole assembly.
Start with the exact GDZ-26-3 configuration (24,000 rpm configuration). Compare the mounting drawing, nose clearance and connection locations with the existing installation. Check the collet, nut clearance and usable clamp area before reusing tooling or supports.
- Check the water circuit and the connector details shown in the drawing.
- Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDZ-26-3Current configuration | 1.2 kW rated | 24,000 rpm rated | ER11 | Water-cooled | 24,000 rpm configuration · Ø62 mm · 237 mm overall · 100 mm clamp |
| GDZ-18 | 1.5 kW rated | 24,000 rpm rated | ER11 | Water-cooled | Ø65 mm · 235.5 mm overall |
| GDK58-24Z/0.8 | 0.8 kW rated | 24,000 rpm rated | ER11 | Water-cooled | Ø58 mm · 220.5 mm overall |
| GDZ-17B | 1.5 kW rated | 24,000 rpm rated | ER16 | Water-cooled | Ø80 mm · 241 mm overall |
| GDZ-18-2 | 0.8 kW rated | 24,000 rpm rated | ER11B | Water-cooled | Ø65 mm · 224 mm overall |
DOWNLOADS
Files for this configuration.
No standalone PDF is listed for this configuration. Use the full-size drawing above and include any document requirements in your inquiry.
For CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDZ-26-3 need?
This configuration combines ER11 tooling, 24,000 rpm rated and 24,000 rpm configuration · Ø62 mm · 237 mm overall · 100 mm clamp. Keep the complete code and 24,000 rpm configuration when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ER11 tooling, drive details and cooling arrangement. GDK58-24Z/0.8 has a smaller body and different output; GDZ-18 has a larger 65 mm body and 1.5 kW rating.
