Machine requirements
For machines that use ER11 tooling and water cooling. Check that your drive supports 24,000 rpm rated and that the mounting dimensions fit: Ø58 mm · 220.5 mm overall.

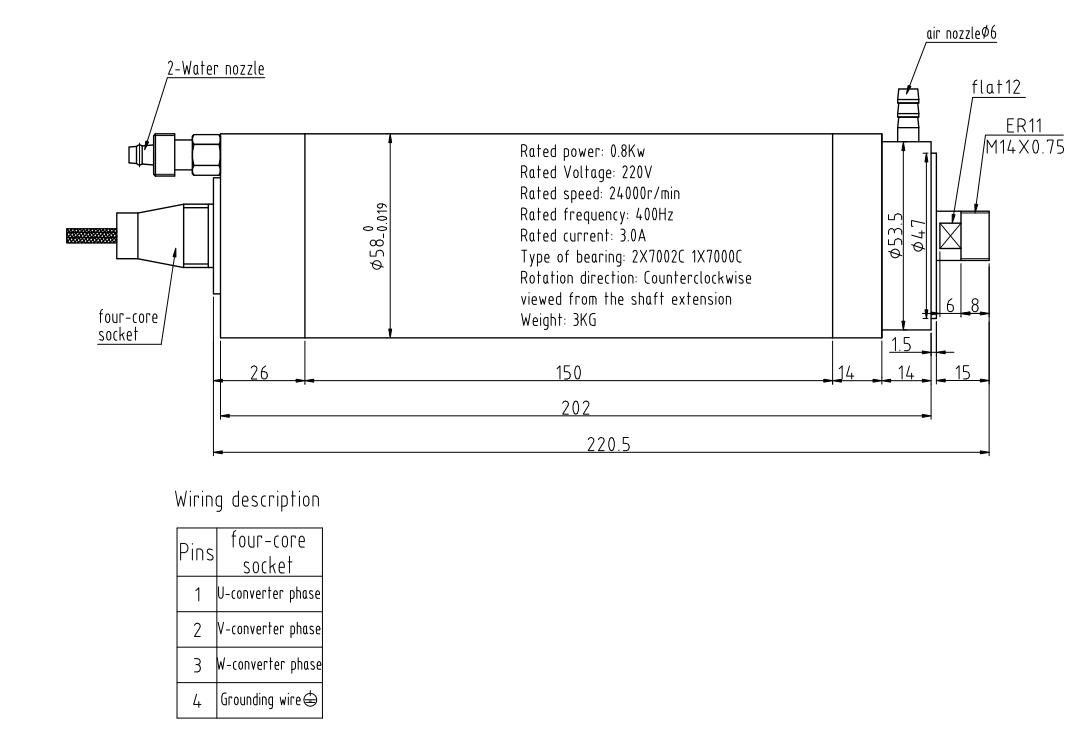

View full-size photo
GDK SPINDLE · MANUAL
GDK58-24Z/0.8
A compact water-cooled spindle with a 58 mm body, ER11 tooling and 0.8 kW rated output. Consider the smaller clamp size before selecting from power alone.
0.8 kW ratedER11Water-cooled24,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
The drawing gives 220.5 mm overall length and 3 kg weight. Confirm cooling connections and the selected winding for the supplied unit.
Compare alternatives
GDZ-26-1 has a 62 mm body and ER11B marking; those interfaces and dimensions should not be merged.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This water-cooled spindle uses ER11 tooling. Power: 0.8 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 58 mm body diameter, 220.5 mm overall length, 3 kg weight. Winding options: 220 V / 3 A.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 0.8 |
| Rated speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ER11 |
| Tool change | Manual tool change |
| Electrical | |
| Frequency (Hz) | 400 |
| Dimensions and weight | |
| Body diameter (mm) | 58 |
| Overall length (mm) | 220.5 |
| Weight (kg) | 3 |
| Cooling and feedback | |
| Cooling | Water-cooled |
Winding options
Match the voltage and current of the winding you intend to order.
- 220 V · 3 A
INSTALLATION CHECKS
Match the whole assembly.
Start with the exact GDK58-24Z/0.8 configuration. Compare the mounting drawing, nose clearance and connection locations with the existing installation. Check the collet, nut clearance and usable clamp area before reusing tooling or supports.
- Check the water circuit and the connector details shown in the drawing.
- Match the drive to the selected winding’s voltage and current.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDK58-24Z/0.8Current configuration | 0.8 kW rated | 24,000 rpm rated | ER11 | Water-cooled | Ø58 mm · 220.5 mm overall |
| GDZ-26-1 | 0.8 kW rated | 24,000 rpm rated | ER11B | Water-cooled | Ø62 mm · 188.5 mm overall |
| GDK100-12-24Z/2.2-4.4 | 2.2 kW rated | 12,000–24,000 rpm | ER20 | Water-cooled | Ø100 mm · 295 mm overall · 140 mm clamp |
| GDK100-24Z/3.2 | 3.2 kW rated | 24,000 rpm rated | ER20 | Water-cooled | Ø100 mm · 295 mm overall · 140 mm clamp |
| GDK105-21Z/3.5 | 3.5 kW rated | 21,000 rpm rated | ER20 | Water-cooled | Ø105 mm · 312 mm overall |
DOWNLOADS
Files for this configuration.
No standalone PDF is listed for this configuration. Use the full-size drawing above and include any document requirements in your inquiry.
For CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDK58-24Z/0.8 need?
This configuration combines ER11 tooling, 24,000 rpm rated and Ø58 mm · 220.5 mm overall. Keep the complete code when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ER11 tooling, drive details and cooling arrangement. GDZ-26-1 has a 62 mm body and ER11B marking; those interfaces and dimensions should not be merged.
REQUEST A QUOTE
Tell us what your machine needs.
Share a model or describe what you need to match. Unknown technical details can be left blank.
Useful details to have ready
- Exact code and readable nameplate
- Mounting dimensions and available clearance
- Tool interface and required speed
- Drive output, cooling and ATC connections
Attach photographs or drawings in your email application.
