Machine requirements
For machines that use ER20 tooling and water cooling. Check that your drive supports 12,000–24,000 rpm and that the mounting dimensions fit: Ø80 mm · 284 mm overall · 135 mm clamp.

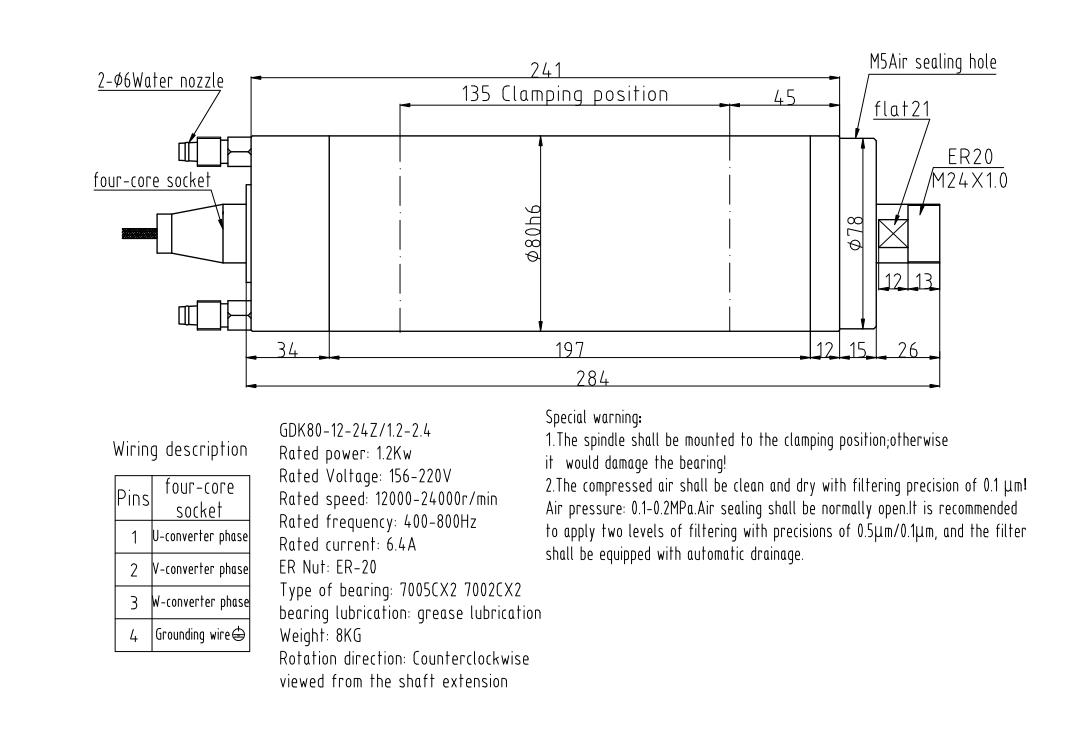

View full-size photo
GDK SPINDLE · MANUAL
GDK80-12-24Z/1.2-2.4
An 80 mm water-cooled ER20 spindle with a 12,000–24,000 rpm range and 1.2 kW rated output. Its curve matters more than the two power numbers in the code.
1.2 kW ratedER20Water-cooled12,000–24,000 rpm
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
Check the 156–220 V curve endpoints across 400–800 Hz. The drawing lists 135 mm clamping length and 284 mm overall length.
Compare alternatives
GDK80-24Z/2.2 shares ER20 and the body size, but it has a fixed rated point and different output.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This water-cooled spindle uses ER20 tooling. Power: 1.2 kW rated. Speed: 12,000–24,000 rpm. Installation dimensions and weight: 80 mm body diameter, 135 mm clamping length, 284 mm overall length, 8 kg weight.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 1.2 |
| Operating range (rpm) | 12,000–24,000 |
| Tooling and mounting | |
| Tool interface | ER20 |
| Tool change | Manual tool change |
| Electrical | |
| Rated current (A) | 6.4 |
| Frequency range (Hz) | 400–800 |
| Curve voltage endpoints (V) | 156–220 |
| Dimensions and weight | |
| Body diameter (mm) | 80 |
| Overall length (mm) | 284 |
| Clamping length (mm) | 135 |
| Weight (kg) | 8 |
| Cooling and feedback | |
| Cooling | Water-cooled |
INSTALLATION CHECKS
Match the whole assembly.
Start with the exact GDK80-12-24Z/1.2-2.4 configuration. Compare the mounting drawing, nose clearance and connection locations with the existing installation. Check the collet, nut clearance and usable clamp area before reusing tooling or supports.
- Check the water circuit and the connector details shown in the drawing.
- Ask for the voltage and current of the supplied spindle before choosing the drive. Do not use another model’s electrical ratings.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDK80-12-24Z/1.2-2.4Current configuration | 1.2 kW rated | 12,000–24,000 rpm | ER20 | Water-cooled | Ø80 mm · 284 mm overall · 135 mm clamp |
| GDK80-24Z/2.2 | 2.2 kW rated | 24,000 rpm rated | ER20 | Water-cooled | Ø80 mm · 284 mm overall · 135 mm clamp |
| GDK100-12-24Z/2.2-4.4 | 2.2 kW rated | 12,000–24,000 rpm | ER20 | Water-cooled | Ø100 mm · 295 mm overall · 140 mm clamp |
| GDK100-24Z/3.2 | 3.2 kW rated | 24,000 rpm rated | ER20 | Water-cooled | Ø100 mm · 295 mm overall · 140 mm clamp |
| GDK105-21Z/3.5 | 3.5 kW rated | 21,000 rpm rated | ER20 | Water-cooled | Ø105 mm · 312 mm overall |
DOWNLOADS
Files for this configuration.
No standalone PDF is listed for this configuration. Use the full-size drawing above and include any document requirements in your inquiry.
For CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDK80-12-24Z/1.2-2.4 need?
This configuration combines ER20 tooling, 12,000–24,000 rpm and Ø80 mm · 284 mm overall · 135 mm clamp. Keep the complete code when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ER20 tooling, drive details and cooling arrangement. GDK80-24Z/2.2 shares ER20 and the body size, but it has a fixed rated point and different output.
