Machine requirements
For machines that use ER16 tooling and water cooling. Check that your drive supports 24,000 rpm rated and that the mounting dimensions fit: Ø80 mm · 259 mm overall · 118 mm clamp.

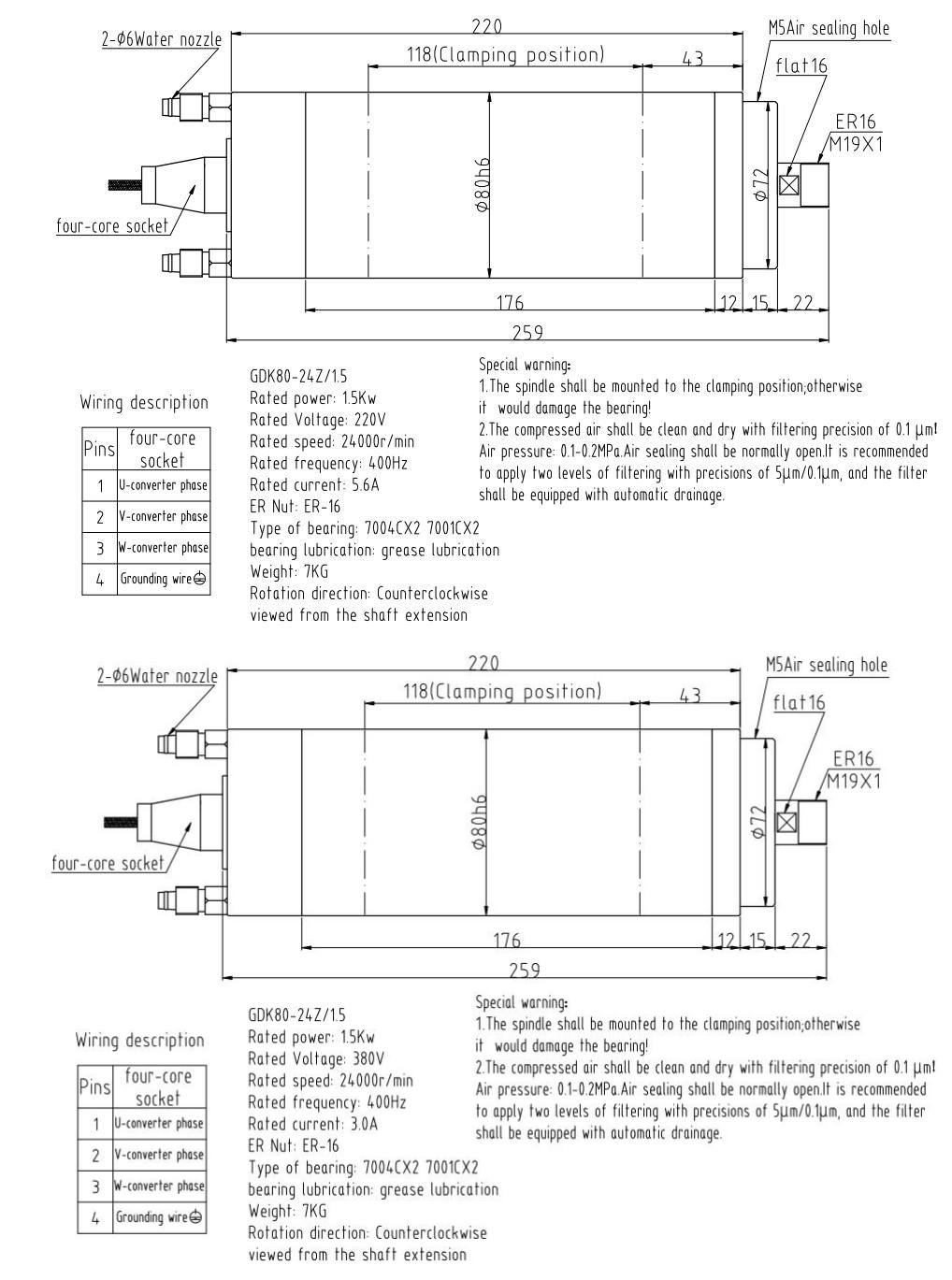

View full-size photo
GDK SPINDLE · MANUAL
GDK80-24Z/1.5
An 80 mm water-cooled ER16 configuration rated at 1.5 kW and 24,000 rpm. Keep the smaller collet interface in the installation brief.
1.5 kW ratedER16Water-cooled24,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
Check the 118 mm clamping length, 259 mm overall length and the documented 0.1–0.2 MPa air-seal connection.
Compare alternatives
GDK80-24Z/2.2 changes the interface to ER20 and extends the clamping and overall dimensions.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This water-cooled spindle uses ER16 tooling. Power: 1.5 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 80 mm body diameter, 118 mm clamping length, 259 mm overall length, 7 kg weight. Winding options: 220 V / 5.6 A or 380 V / 3 A.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 1.5 |
| Rated speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ER16 |
| Tool change | Manual tool change |
| Electrical | |
| Frequency (Hz) | 400 |
| Dimensions and weight | |
| Body diameter (mm) | 80 |
| Overall length (mm) | 259 |
| Clamping length (mm) | 118 |
| Weight (kg) | 7 |
| Cooling and feedback | |
| Cooling | Water-cooled |
| Air-seal pressure (MPa) | 0.1–0.2 |
Winding options
Match the voltage and current of the winding you intend to order.
- 220 V · 5.6 A
- 380 V · 3 A
INSTALLATION CHECKS
Match the whole assembly.
Start with the exact GDK80-24Z/1.5 configuration. Compare the mounting drawing, nose clearance and connection locations with the existing installation. Check the collet, nut clearance and usable clamp area before reusing tooling or supports.
- Check the water circuit and the connector details shown in the drawing.
- Match the drive to the selected winding’s voltage and current.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDK80-24Z/1.5Current configuration | 1.5 kW rated | 24,000 rpm rated | ER16 | Water-cooled | Ø80 mm · 259 mm overall · 118 mm clamp |
| GDK80-24Z/2.2 | 2.2 kW rated | 24,000 rpm rated | ER20 | Water-cooled | Ø80 mm · 284 mm overall · 135 mm clamp |
| GDK100-12-24Z/2.2-4.4 | 2.2 kW rated | 12,000–24,000 rpm | ER20 | Water-cooled | Ø100 mm · 295 mm overall · 140 mm clamp |
| GDK100-24Z/3.2 | 3.2 kW rated | 24,000 rpm rated | ER20 | Water-cooled | Ø100 mm · 295 mm overall · 140 mm clamp |
| GDK105-21Z/3.5 | 3.5 kW rated | 21,000 rpm rated | ER20 | Water-cooled | Ø105 mm · 312 mm overall |
DOWNLOADS
Files for this configuration.
No standalone PDF is listed for this configuration. Use the full-size drawing above and include any document requirements in your inquiry.
For CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDK80-24Z/1.5 need?
This configuration combines ER16 tooling, 24,000 rpm rated and Ø80 mm · 259 mm overall · 118 mm clamp. Keep the complete code when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ER16 tooling, drive details and cooling arrangement. GDK80-24Z/2.2 changes the interface to ER20 and extends the clamping and overall dimensions.
