Machine requirements
For machines that use ER16 tooling and air cooling. Check that your drive supports 24,000 rpm rated and that the mounting dimensions fit: Ø80 mm · 263.5 mm overall.
View full-size photo
GDF SPINDLE · MANUAL
GDF80-24Z/2.2
An 80 mm air-cooled configuration with ER16 tooling and 2.2 kW rated output. It suits a manual-collet installation whose tool shanks fit the specified interface.
2.2 kW ratedER16Air-cooled24,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering

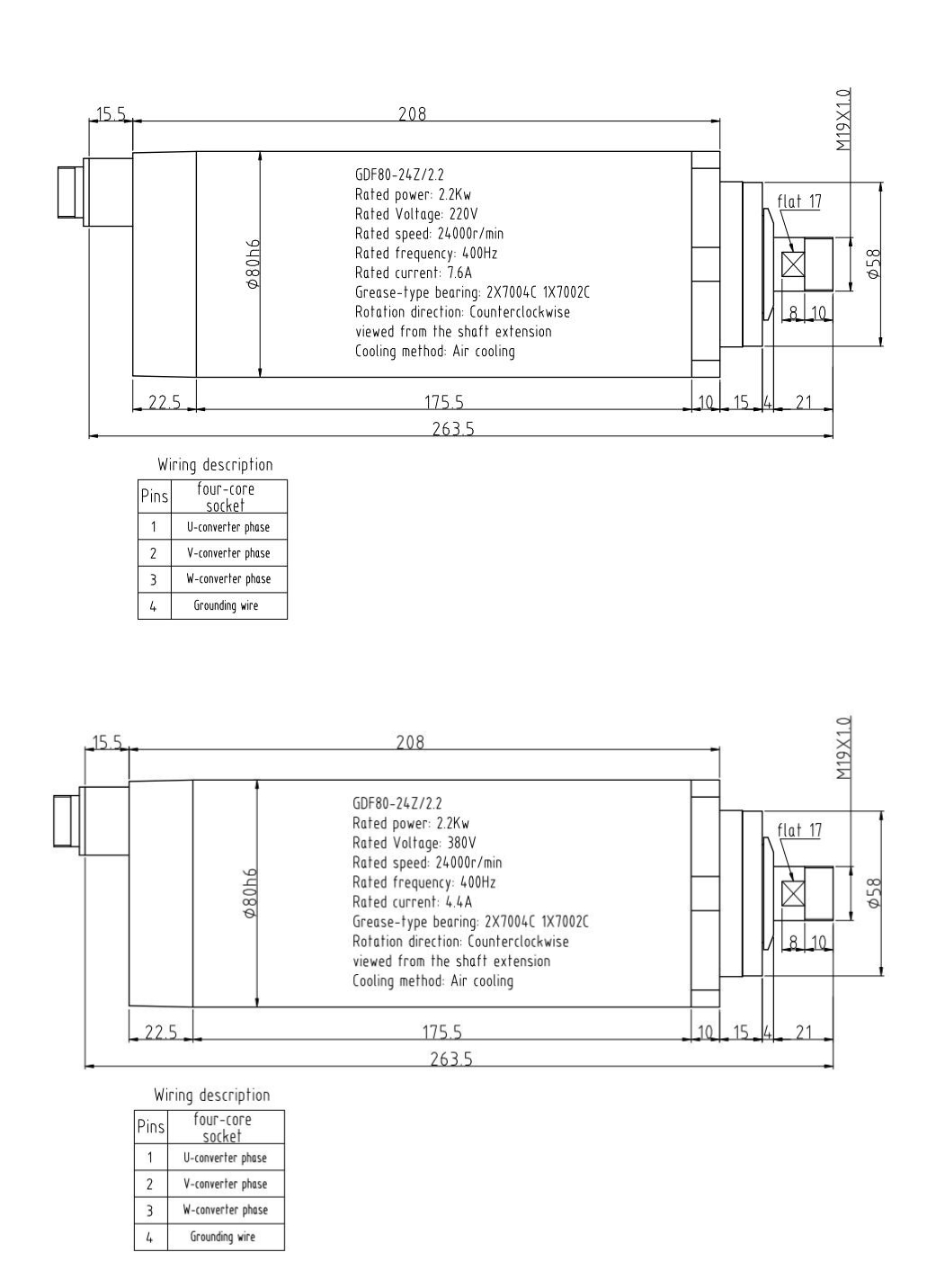

The drawing lists 263.5 mm overall length. Confirm the winding and current before sizing the VFD; the model code alone does not supply those values.
Compare alternatives
GDF80-24Z/2.2B uses ER20 and a different overall length. Keep the B version distinct.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This air-cooled spindle uses ER16 tooling. Power: 2.2 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 80 mm body diameter, 263.5 mm overall length. Winding options: 220 V / 7.6 A or 380 V / 4.4 A.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 2.2 |
| Rated speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ER16 |
| Tool change | Manual tool change |
| Electrical | |
| Frequency (Hz) | 400 |
| Dimensions and weight | |
| Body diameter (mm) | 80 |
| Overall length (mm) | 263.5 |
| Cooling and feedback | |
| Cooling | Air-cooled |
Winding options
Match the voltage and current of the winding you intend to order.
- 220 V · 7.6 A
- 380 V · 4.4 A
INSTALLATION CHECKS
Match the whole assembly.
Start with the exact GDF80-24Z/2.2 configuration. Compare the mounting drawing, nose clearance and connection locations with the existing installation. Check the collet, nut clearance and usable clamp area before reusing tooling or supports.
- Allow unobstructed cooling airflow and confirm any fan wiring.
- Match the drive to the selected winding’s voltage and current.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDF80-24Z/2.2Current configuration | 2.2 kW rated | 24,000 rpm rated | ER16 | Air-cooled | Ø80 mm · 263.5 mm overall |
| GDF80-24Z/2.2B | 2.2 kW rated | 24,000 rpm rated | ER20 | Air-cooled | Ø80 mm · 269.5 mm overall · 125 mm clamp |
| GDF46-18Z/1.5 | 1.5 kW rated | 18,000 rpm rated | ER20 | Air-cooled | Base Mount · 258.5 mm overall |
| GDF46-18Z/2.2 | 2.2 kW rated | 18,000 rpm rated | ER20 | Air-cooled | Base mount · 288.5 mm overall |
| GDF46-18Z/2.2 | 2.2 kW rated | 18,000 rpm rated | ER20 | Air-cooled | Housing Mount · 288.5 mm overall |
DOWNLOADS
Files for this configuration.
PDF · 585 KB
Dimensions, specifications and wiring
GDF80-24Z/2.2 · 220 V winding
English · Revision not specified
Download PDFFor CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDF80-24Z/2.2 need?
This configuration combines ER16 tooling, 24,000 rpm rated and Ø80 mm · 263.5 mm overall. Keep the complete code when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ER16 tooling, drive details and cooling arrangement. GDF80-24Z/2.2B uses ER20 and a different overall length. Keep the B version distinct.
