Machine requirements
For machines that use ER11 tooling and air cooling. Check that your drive supports 24,000 rpm rated and that the mounting dimensions fit: Ø80 mm · 256.5 mm overall.

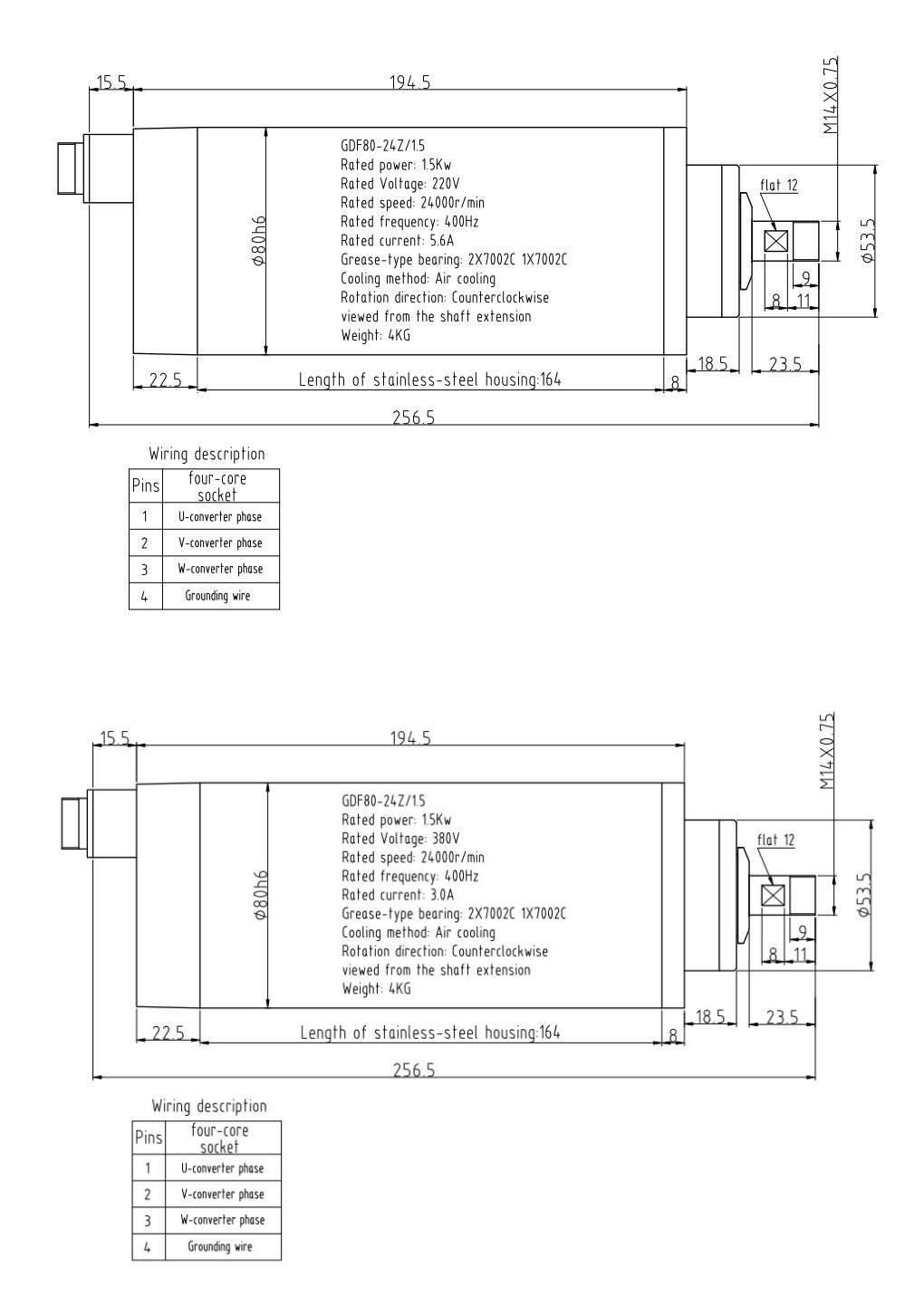

View full-size photo
GDF SPINDLE · MANUAL
GDF80-24Z/1.5
An 80 mm air-cooled spindle rated at 1.5 kW and 24,000 rpm, with ER11 tooling. The collet requirement matters alongside the clamp diameter.
1.5 kW ratedER11Air-cooled24,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
Use the 256.5 mm overall length for clearance checks. Do not borrow the ER16 or ER20 interface from the nearby 2.2 kW models.
Compare alternatives
Compare the 2.2 kW GDF80 versions when the work requires a different collet interface or output.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This air-cooled spindle uses ER11 tooling. Power: 1.5 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 80 mm body diameter, 256.5 mm overall length, 4 kg weight. Winding options: 220 V / 5.6 A or 380 V / 3 A.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 1.5 |
| Rated speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ER11 |
| Tool change | Manual tool change |
| Electrical | |
| Frequency (Hz) | 400 |
| Dimensions and weight | |
| Body diameter (mm) | 80 |
| Overall length (mm) | 256.5 |
| Weight (kg) | 4 |
| Cooling and feedback | |
| Cooling | Air-cooled |
Winding options
Match the voltage and current of the winding you intend to order.
- 220 V · 5.6 A
- 380 V · 3 A
INSTALLATION CHECKS
Match the whole assembly.
Start with the exact GDF80-24Z/1.5 configuration. Compare the mounting drawing, nose clearance and connection locations with the existing installation. Check the collet, nut clearance and usable clamp area before reusing tooling or supports.
- Allow unobstructed cooling airflow and confirm any fan wiring.
- Match the drive to the selected winding’s voltage and current.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDF80-24Z/1.5Current configuration | 1.5 kW rated | 24,000 rpm rated | ER11 | Air-cooled | Ø80 mm · 256.5 mm overall |
| GDF80-24Z/2.2 | 2.2 kW rated | 24,000 rpm rated | ER16 | Air-cooled | Ø80 mm · 263.5 mm overall |
| GDF80-24Z/2.2B | 2.2 kW rated | 24,000 rpm rated | ER20 | Air-cooled | Ø80 mm · 269.5 mm overall · 125 mm clamp |
| GDF65-24Z/0.8 | 0.8 kW rated | 24,000 rpm rated | ER11 | Air-cooled | Ø65 mm · 245 mm overall |
| GDF46-18Z/1.5 | 1.5 kW rated | 18,000 rpm rated | ER20 | Air-cooled | Base Mount · 258.5 mm overall |
DOWNLOADS
Files for this configuration.
PDF · 588 KB
Dimensions, specifications and wiring
GDF80-24Z/1.5 · 220 V winding
English · Revision not specified
Download PDFFor CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDF80-24Z/1.5 need?
This configuration combines ER11 tooling, 24,000 rpm rated and Ø80 mm · 256.5 mm overall. Keep the complete code when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ER11 tooling, drive details and cooling arrangement. Compare the 2.2 kW GDF80 versions when the work requires a different collet interface or output.
