Machine requirements
For machines that use ER11 tooling and air cooling. Check that your drive supports 24,000 rpm rated and that the mounting dimensions fit: Ø65 mm · 245 mm overall.
View full-size photo
GDF SPINDLE · MANUAL
GDF65-24Z/0.8
An air-cooled 0.8 kW configuration with a 65 mm body and ER11 tooling. Consider it where a smaller clamp and collet are part of the installation requirements.
0.8 kW ratedER11Air-cooled24,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
Check the 245 mm overall length and confirm the winding before specifying a drive. Check the ER11 tooling as well as the mounting dimensions.
Compare alternatives
GDF80-24Z/1.5 changes the body to 80 mm and rated output to 1.5 kW; it needs a different installation check.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This air-cooled spindle uses ER11 tooling. Power: 0.8 kW rated. Speed: 24,000 rpm rated. Installation dimensions and weight: 65 mm body diameter, 245 mm overall length, 3 kg weight. Winding options: 220 V / 3 A or 380 V / 1.6 A.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 0.8 |
| Rated speed (rpm) | 24,000 |
| Tooling and mounting | |
| Tool interface | ER11 |
| Tool change | Manual tool change |
| Electrical | |
| Frequency (Hz) | 400 |
| Dimensions and weight | |
| Body diameter (mm) | 65 |
| Overall length (mm) | 245 |
| Weight (kg) | 3 |
| Cooling and feedback | |
| Cooling | Air-cooled |
Winding options
Match the voltage and current of the winding you intend to order.
- 220 V · 3 A
- 380 V · 1.6 A
INSTALLATION CHECKS
Match the whole assembly.
Start with the exact GDF65-24Z/0.8 configuration. Compare the mounting drawing, nose clearance and connection locations with the existing installation. Check the collet, nut clearance and usable clamp area before reusing tooling or supports.
- Allow unobstructed cooling airflow and confirm any fan wiring.
- Match the drive to the selected winding’s voltage and current.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDF65-24Z/0.8Current configuration | 0.8 kW rated | 24,000 rpm rated | ER11 | Air-cooled | Ø65 mm · 245 mm overall |
| GDF80-24Z/1.5 | 1.5 kW rated | 24,000 rpm rated | ER11 | Air-cooled | Ø80 mm · 256.5 mm overall |
| GDF46-18Z/1.5 | 1.5 kW rated | 18,000 rpm rated | ER20 | Air-cooled | Base Mount · 258.5 mm overall |
| GDF46-18Z/2.2 | 2.2 kW rated | 18,000 rpm rated | ER20 | Air-cooled | Base mount · 288.5 mm overall |
| GDF46-18Z/2.2 | 2.2 kW rated | 18,000 rpm rated | ER20 | Air-cooled | Housing Mount · 288.5 mm overall |
DOWNLOADS
Files for this configuration.
PDF · 583 KB

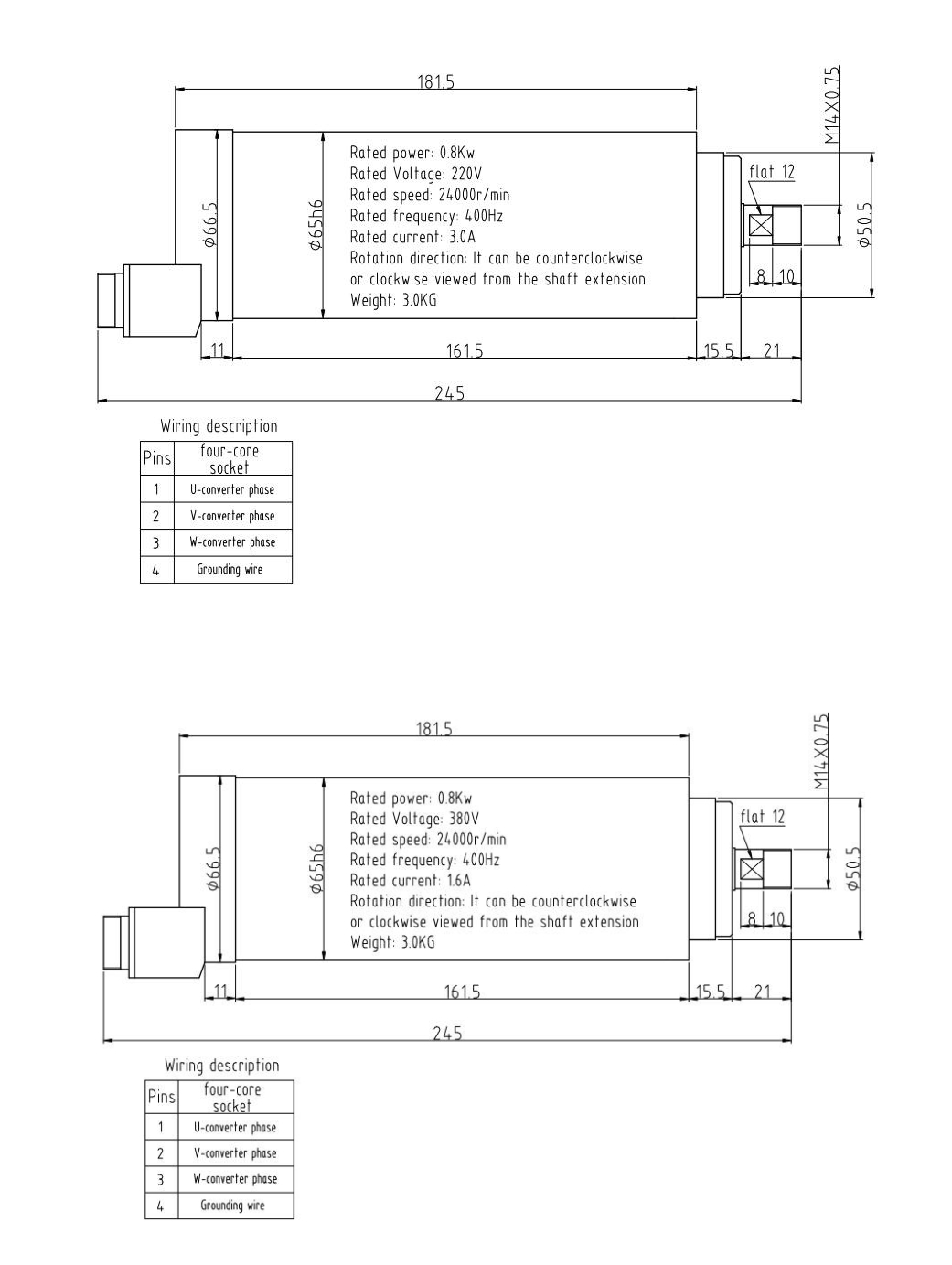

Dimensions, specifications and wiring
GDF65-24Z/0.8 · 220 V winding
English · Revision not specified
Download PDFFor CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDF65-24Z/0.8 need?
This configuration combines ER11 tooling, 24,000 rpm rated and Ø65 mm · 245 mm overall. Keep the complete code when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ER11 tooling, drive details and cooling arrangement. GDF80-24Z/1.5 changes the body to 80 mm and rated output to 1.5 kW; it needs a different installation check.
