Machine requirements
Consider this model when the machine needs the documented speed range, a 100 mm cylindrical body and a 140 mm clamping length.
View full-size photo
GDK SPINDLE · MANUAL
GDK100-12-24Z/2.2-4.4
A water-cooled ER20 spindle with a 12,000–24,000 rpm operating range. Read the 2.2–4.4 code alongside the original power curve; the higher value is not a continuous-power promise.
2.2 kW ratedER20Water-cooled12,000–24,000 rpm
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
The curve distinguishes S1 and S6-20% duty at TA20°C. It shows 269–380 V curve endpoints over 400–800 Hz; these are not separate winding choices.
Compare alternatives
For a fixed 24,000 rpm point and a smaller 80 mm body, compare GDZ-23. Confirm that its power, interface and installation suit the intended work.
Compare the differences →SPECIFICATIONS
Read the operating conditions.

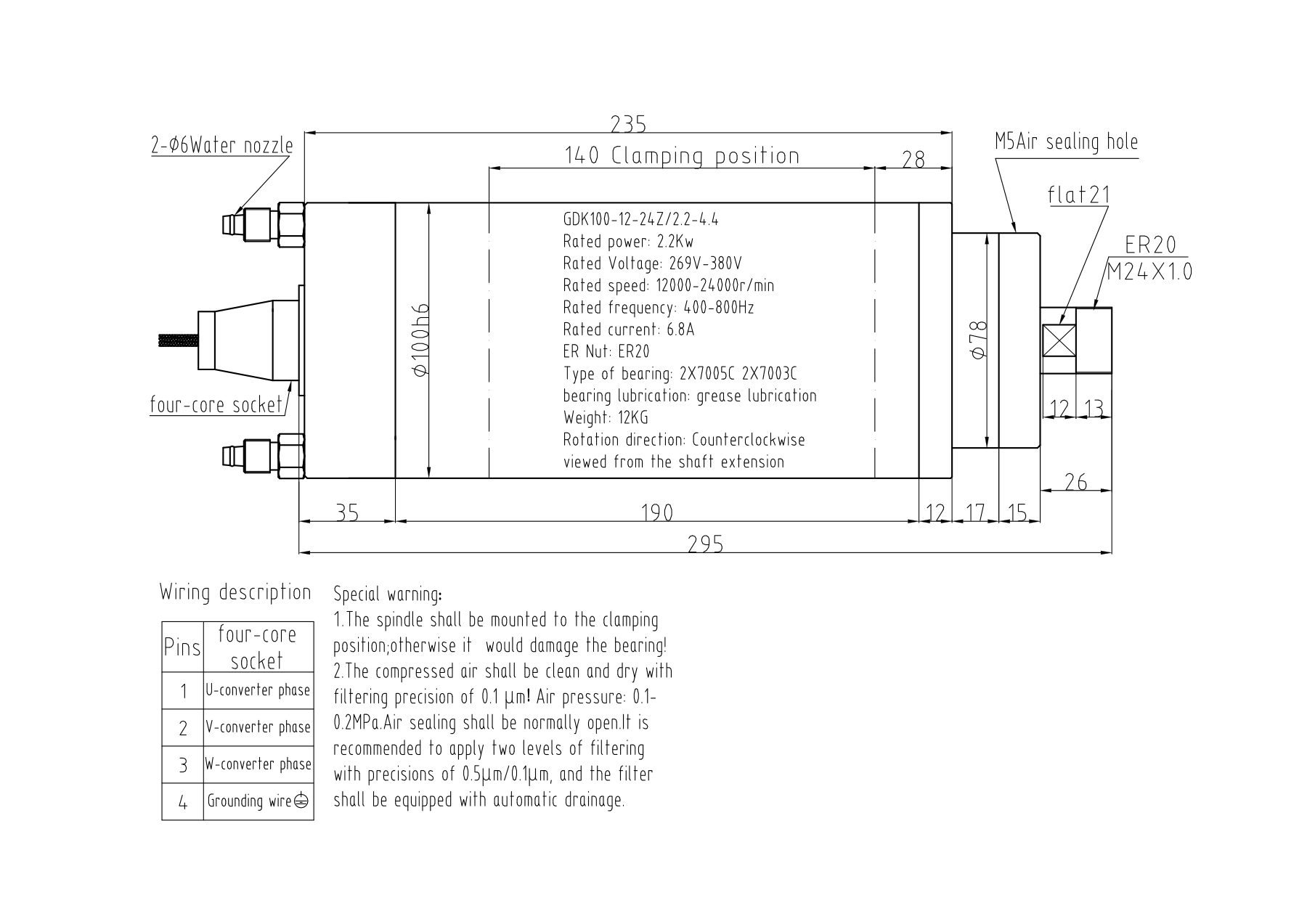

The rated output is 2.2 kW. The drawing lists 6.8 A, 12 kg, a 100 mm body and 295 mm overall length. Additional power on the curve depends on the stated duty conditions.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 2.2 |
| Operating range (rpm) | 12,000–24,000 |
| Tooling and mounting | |
| Tool interface | ER20 |
| Tool change | Manual tool change |
| Electrical | |
| Rated current (A) | 6.8 |
| Frequency range (Hz) | 400–800 |
| Curve voltage endpoints (V) | 269–380 |
| Dimensions and weight | |
| Body diameter (mm) | 100 |
| Overall length (mm) | 295 |
| Clamping length (mm) | 140 |
| Weight (kg) | 12 |
| Cooling and feedback | |
| Cooling | Water-cooled |
Power curve: S1 and S6-20% at TA20°C are distinct duty conditions. The 2.2–4.4 model code and 269–380 V curve endpoints do not establish continuous 4.4 kW output or separate winding options.
INSTALLATION CHECKS
Match the whole assembly.
Compare the complete power-versus-speed curve, duty cycle, clamp dimensions and drive capability. Do not select the replacement from the 4.4 value in the code alone.
- The higher curve output is duty-dependent; do not use it as continuous rated power.
- Curve voltage endpoints do not establish selectable winding configurations. Also check the air-sealing connection shown in the drawing.
- Use the dimensional PDF and original power curve for installation checks.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDK100-12-24Z/2.2-4.4Current configuration | 2.2 kW rated | 12,000–24,000 rpm | ER20 | Water-cooled | Ø100 mm · 295 mm overall · 140 mm clamp |
| GDZ-23 | 2.2 kW rated | 24,000 rpm rated | ER20 | Water-cooled | Ø80 mm · 268.5 mm overall · 120 mm clamp |
| GDK100-24Z/3.2 | 3.2 kW rated | 24,000 rpm rated | ER20 | Water-cooled | Ø100 mm · 295 mm overall · 140 mm clamp |
| GDK105-21Z/3.5 | 3.5 kW rated | 21,000 rpm rated | ER20 | Water-cooled | Ø105 mm · 312 mm overall |
| GDK105-9-21Z/2.2-5.0 | 2.2 kW rated | 9,000–21,000 rpm | ER20 | Water-cooled | Ø105 mm · 344 mm overall · 155 mm clamp |
