Machine requirements
Consider this configuration when your machine needs a bolted base mount, manual collet changes and an 18,000 rpm spindle rated at 300 Hz.
View full-size photo
GDF SPINDLE · MANUAL
GDF46-18Z/2.2
Base mount
A 2.2 kW air-cooled spindle with an ER20 interface and base mounting. The same model code is also used for a housing-mount version, which has a different mounting arrangement.
2.2 kW ratedER20Air-cooled18,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
Compare the base dimensions and bolt locations before ordering. The 220 V / 7.8 A and 380 V / 4.4 A winding configurations have separate drawings.
Compare alternatives
For a cylindrical clamp installation with water cooling, compare the GDZ-23. Its mounting arrangement, speed and cooling circuit differ even though rated power is also 2.2 kW.
Compare the differences →SPECIFICATIONS
Read the operating conditions.

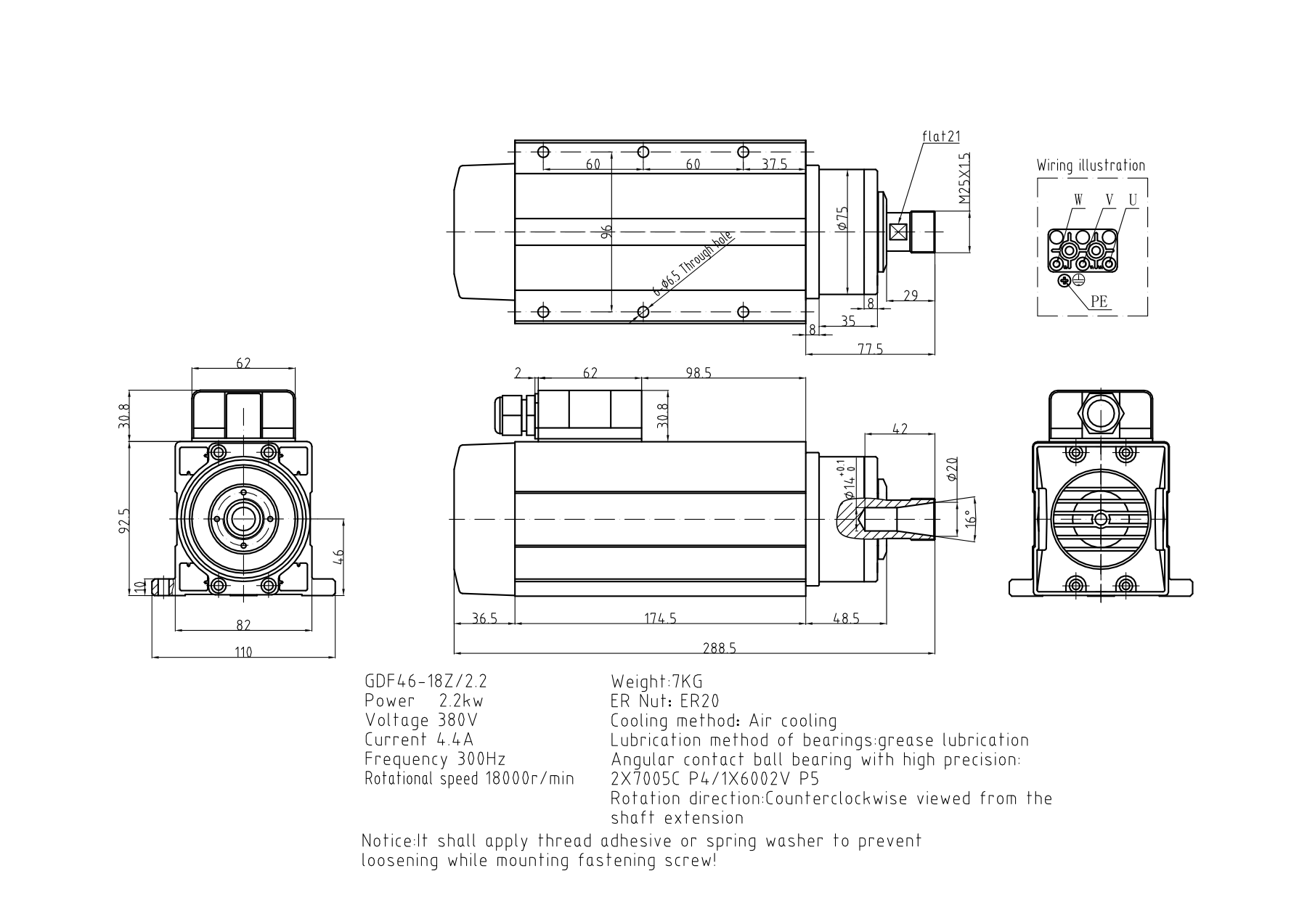

The base-mount drawing specifies 2.2 kW, 18,000 rpm, 300 Hz, ER20 and 7 kg. Overall length is 288.5 mm.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 2.2 |
| Rated speed (rpm) | 18,000 |
| Tooling and mounting | |
| Tool interface | ER20 |
| Tool change | Manual tool change |
| Mounting | base mount |
| Electrical | |
| Frequency (Hz) | 300 |
| Dimensions and weight | |
| Overall length (mm) | 288.5 |
| Weight (kg) | 7 |
| Cooling and feedback | |
| Cooling | Air-cooled |
Winding options
Match the voltage and current of the winding you intend to order.
- 220 V · 7.8 A
- 380 V · 4.4 A
INSTALLATION CHECKS
Match the whole assembly.
Check the base rather than relying on the model code alone. The housing-mount version needs its own drawing and installation dimensions.
- Check the bolted base and its mounting holes; the housing-mount version has a different structure.
- Choose the winding that matches the drive output, then check its rated current.
- Request installation files specifically for the base-mount structure.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDF46-18Z/2.2Current configuration | 2.2 kW rated | 18,000 rpm rated | ER20 | Air-cooled | Base mount · 288.5 mm overall |
| GDF46-18Z/2.2 | 2.2 kW rated | 18,000 rpm rated | ER20 | Air-cooled | Housing Mount · 288.5 mm overall |
| GDZ-23 | 2.2 kW rated | 24,000 rpm rated | ER20 | Water-cooled | Ø80 mm · 268.5 mm overall · 120 mm clamp |
| GDF46-18Z/1.5 | 1.5 kW rated | 18,000 rpm rated | ER20 | Air-cooled | Base Mount · 258.5 mm overall |
| GDF80-24Z/2.2B | 2.2 kW rated | 24,000 rpm rated | ER20 | Air-cooled | Ø80 mm · 269.5 mm overall · 125 mm clamp |
DOWNLOADS
Files for this configuration.
PDF · 195 KB
Dimensions, specifications and wiring
GDF46-18Z/2.2 · 380 V winding · base mount only
English · Revision not specified
Download PDFPDF · 195 KB
Dimensions, specifications and wiring
GDF46-18Z/2.2 · 220 V winding · base mount only
English · Revision not specified
Download PDFFor CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
Does the code identify the mounting arrangement?
Not by itself. The same printed code appears on both base-mount and housing-mount configurations. Confirm the physical structure.
Can I use the 380 V drawing for a 220 V order?
Use the drawing for the selected winding. The current rating differs: 7.8 A at 220 V and 4.4 A at 380 V.
