Machine requirements
For machines that use ER20 tooling and air cooling. Check that your drive supports 18,000 rpm rated and that the mounting dimensions fit: Base Mount · 258.5 mm overall.

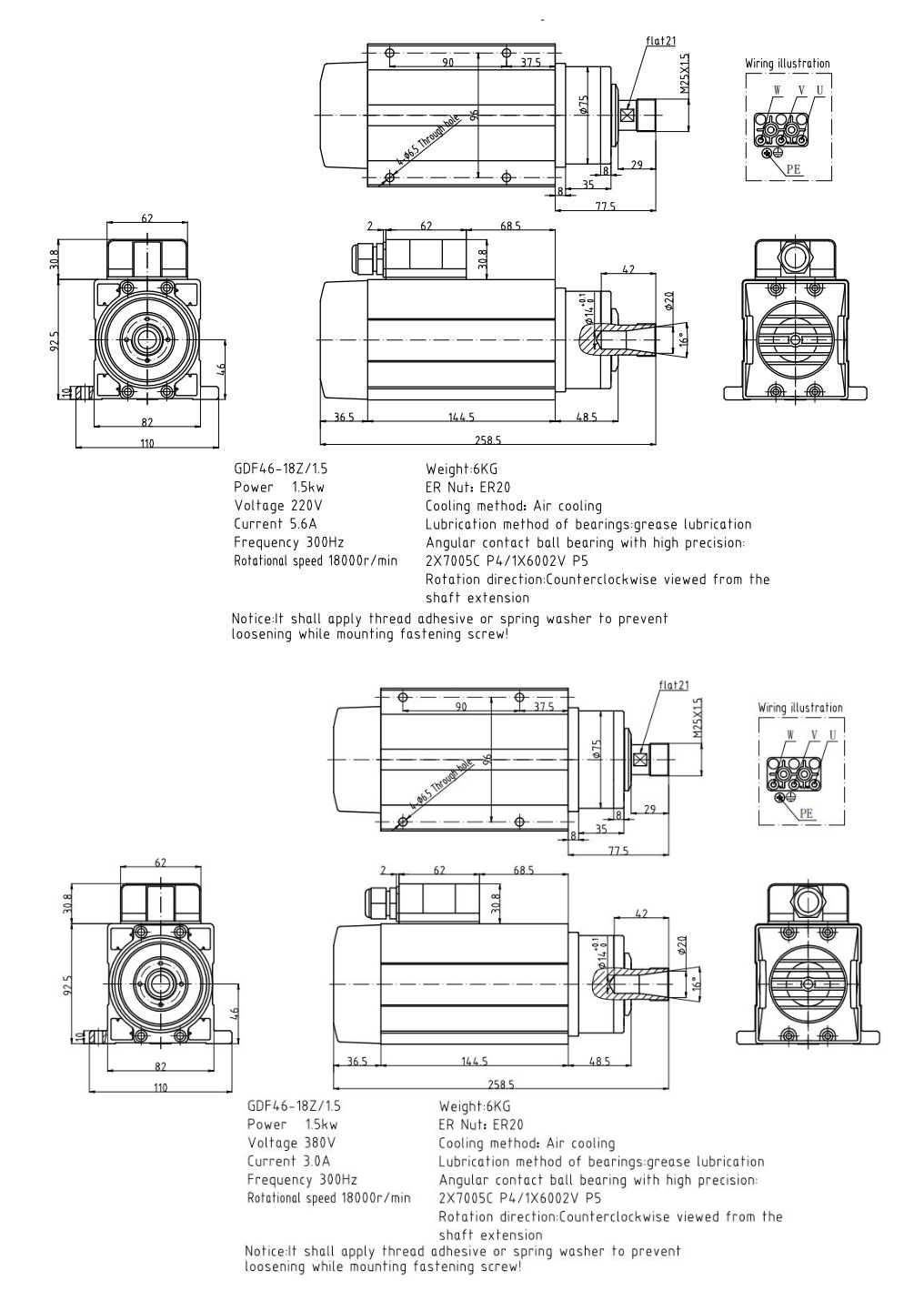

View full-size photo
GDF SPINDLE · MANUAL
GDF46-18Z/1.5
Base Mount
A bolted-base option at 1.5 kW and 18,000 rpm. Check the base footprint before choosing it for a machine that has no cylindrical clamp.
1.5 kW ratedER20Air-cooled18,000 rpm rated
MODEL SELECTION
Is this spindle right for your machine?
Check before ordering
The 258.5 mm overall length differs from the 2.2 kW base version. The same power rating or GDF46 family name does not mean the mounting dimensions match.
Compare alternatives
Compare the 2.2 kW base model if more rated output is needed; compare the housing-mount model only when the mounting arrangement can change.
Compare the differences →SPECIFICATIONS
Read the operating conditions.
This air-cooled spindle uses ER20 tooling. Power: 1.5 kW rated. Speed: 18,000 rpm rated. Installation dimensions and weight: 258.5 mm overall length, 6 kg weight. Winding options: 220 V / 5.6 A or 380 V / 3 A.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Output and duty | |
|---|---|
| Rated power (kW) | 1.5 |
| Rated speed (rpm) | 18,000 |
| Tooling and mounting | |
| Tool interface | ER20 |
| Tool change | Manual tool change |
| Mounting | base mount |
| Electrical | |
| Frequency (Hz) | 300 |
| Dimensions and weight | |
| Overall length (mm) | 258.5 |
| Weight (kg) | 6 |
| Cooling and feedback | |
| Cooling | Air-cooled |
Winding options
Match the voltage and current of the winding you intend to order.
- 220 V · 5.6 A
- 380 V · 3 A
INSTALLATION CHECKS
Match the whole assembly.
Start with the exact GDF46-18Z/1.5 configuration (base mount). Compare the mounting drawing, nose clearance and connection locations with the existing installation. Check the collet, nut clearance and usable clamp area before reusing tooling or supports.
- Allow unobstructed cooling airflow and confirm any fan wiring.
- Match the drive to the selected winding’s voltage and current.
COMPARE RELATED SPINDLES
Compare the installation differences.
These models illustrate different interfaces and installation requirements. Check each drawing before choosing.
Scroll across to compare columns. Keyboard: focus the table area and use the left/right arrow keys.
| Model | Power / duty | Speed | Interface | Cooling | Key difference |
|---|---|---|---|---|---|
| GDF46-18Z/1.5Current configuration | 1.5 kW rated | 18,000 rpm rated | ER20 | Air-cooled | Base Mount · 258.5 mm overall |
| GDF46-18Z/2.2 | 2.2 kW rated | 18,000 rpm rated | ER20 | Air-cooled | Base mount · 288.5 mm overall |
| GDF46-18Z/2.2 | 2.2 kW rated | 18,000 rpm rated | ER20 | Air-cooled | Housing Mount · 288.5 mm overall |
| GDF80-24Z/2.2B | 2.2 kW rated | 24,000 rpm rated | ER20 | Air-cooled | Ø80 mm · 269.5 mm overall · 125 mm clamp |
| GDF65-24Z/0.8 | 0.8 kW rated | 24,000 rpm rated | ER11 | Air-cooled | Ø65 mm · 245 mm overall |
DOWNLOADS
Files for this configuration.
No standalone PDF is listed for this configuration. Use the full-size drawing above and include any document requirements in your inquiry.
For CAD or additional installation drawings, include the exact model and configuration in your inquiry.
MODEL QUESTIONS
Before you order.
What tooling and mounting does GDF46-18Z/1.5 need?
This configuration combines ER20 tooling, 18,000 rpm rated and Base Mount · 258.5 mm overall. Keep the complete code and base mount when comparing drawings.
What should I include in a replacement inquiry?
Include the existing nameplate, mounting dimensions, required ER20 tooling, drive details and cooling arrangement. Compare the 2.2 kW base model if more rated output is needed; compare the housing-mount model only when the mounting arrangement can change.
